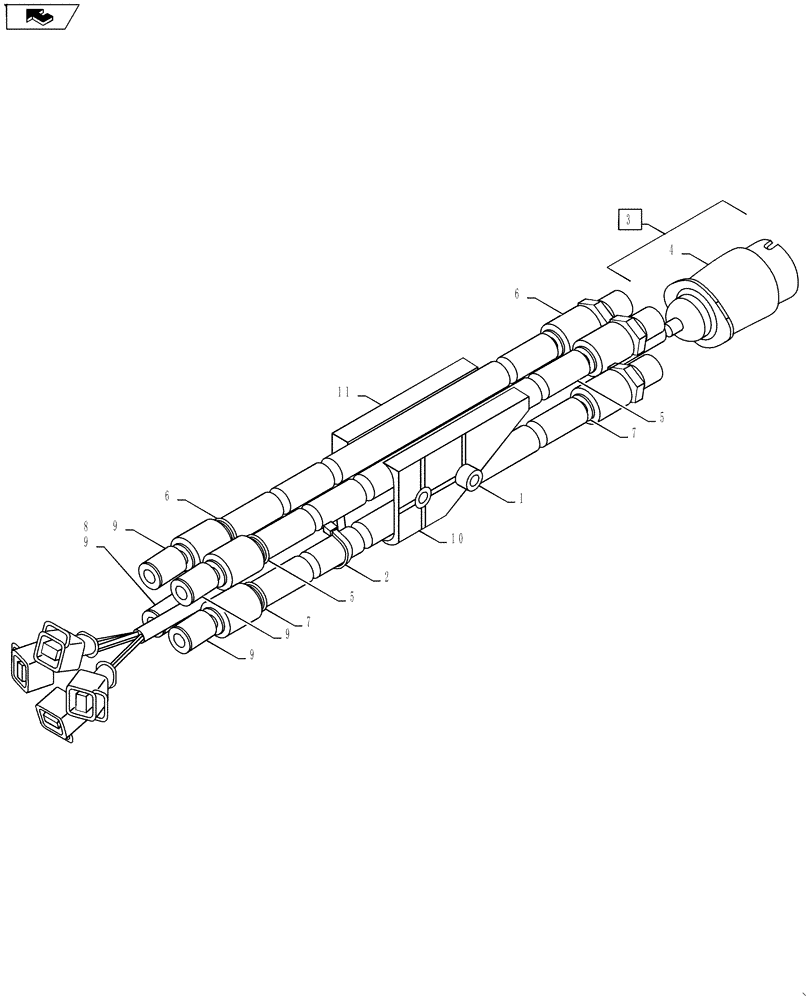

/ / / / / / / / (35.204.02) - MAIN HOSE KIT
Запчасти Case IH L790 (35.204.02) - MAIN HOSE KIT (35) - HYDRAULIC SYSTEMS
9
2
9
9
1
7
5
8
7
3
6
home
6
10
5
11
4
9
1
LDR5004918
SCREW
MC6S 8x55
1шт.
2
LDR5033621
CABLE CLIP
Tie
6шт.
3
LDR5102149
ELECTRIC CABLE
Includes Ref. 4
1шт.
4
LDR5024379
ELEC CONNECTOR
1шт.
5
LDR5103013
SLEEVE
"1”
2шт.
6
LDR5103014
SLEEVE
"2”
2шт.
7
LDR5103015
SLEEVE
"3”
2шт.
8
LDR5103016
SLEEVE
"4”
2шт.
9
LDR9031743
HOSE
1/2" L=4524 mm
4шт.
10
LDR5215051
CLAMP BRACKET
Hose
1шт.
11
LDR5215052
CLAMP BRACKET
Hose
1шт.
