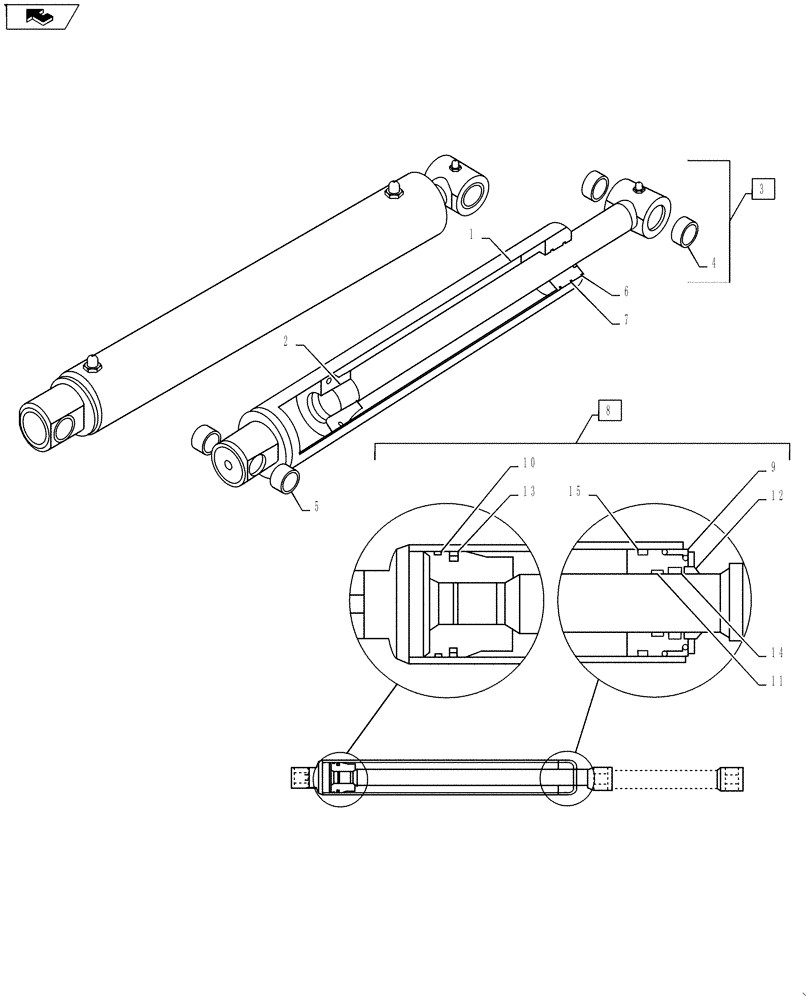

Запчасти Case IH L790 (35.100.04) - CYLINDER (LDR12707510) (35) - HYDRAULIC SYSTEMS

1

LDR12709011

BEARING

1шт.

2

LDR12709012

PISTON

1шт.

3

LDR12707523

PISTON ROD

Includes Ref. 4

1шт.

4

LDR5018514

BUSHING,35mm L

2шт.

5

LDR5018514

BUSHING,35mm L

2шт.

6

LDR5016619

RING

Retaining

1шт.

7

LDR5016666

RING

Retaining

1шт.

8

LDR5033710

SEAL PACKAGE

Kit, Includes Ref. 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring 91.6 x 3.53

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring 100/95 x 5.5

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring 50/55 x 9.7

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper 50/60 x 7/10

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal 100/84.5 x 6.3

1шт.

14

NSS

NOT SOLD SEPARAT

Seal 50/60 x 10

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal 100 x 93.8 x 6.9

1шт.
