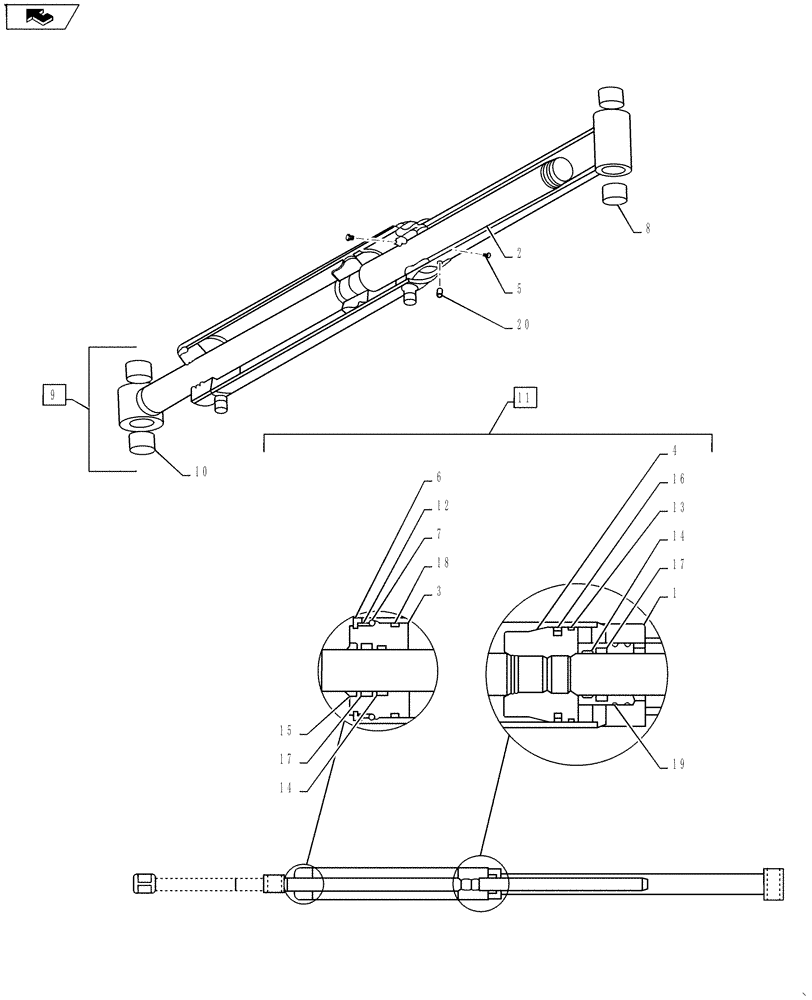

Запчасти Case IH L790 (35.100.03) - CYLINDER (LDR12715910) (35) - HYDRAULIC SYSTEMS

1

LDR12700317

GUIDE

1шт.

2

LDR12700022

ROD

1шт.

3

LDR12710011

BEARING ASSY

1шт.

4

LDR12710012

PISTON

1шт.

5

LDR5005983

SCREW

Stop, S6SS 6x16

2шт.

6

LDR5016624

RING

Retaining

1шт.

7

LDR5016677

RING

Retaining

1шт.

8

LDR5018514

BUSHING,35mm L

2шт.

9

LDR12715923

PISTON ROD

Includes Ref. 10

1шт.

10

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

11

LDR5040071

SEAL KIT

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, 91.6 x 3.53

1шт.

13

NSS

NOT SOLD SEPARAT

Guide Ring 100/95 x 5.5

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring 50/55 x 9.7

2шт.

15

NSS

NOT SOLD SEPARAT

Wiper 50/60 x 7/10

1шт.

16

NSS

NOT SOLD SEPARAT

Piston Seal 100/84.5 x 6.3

1шт.

17

NSS

NOT SOLD SEPARAT

Seal 50/60 x 10

2шт.

18

NSS

NOT SOLD SEPARAT

Cover Seal 100 x 93.8 x 6.9

1шт.

19

NSS

NOT SOLD SEPARAT

Cover Seal 70 x 64.6 x 6.2

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.
