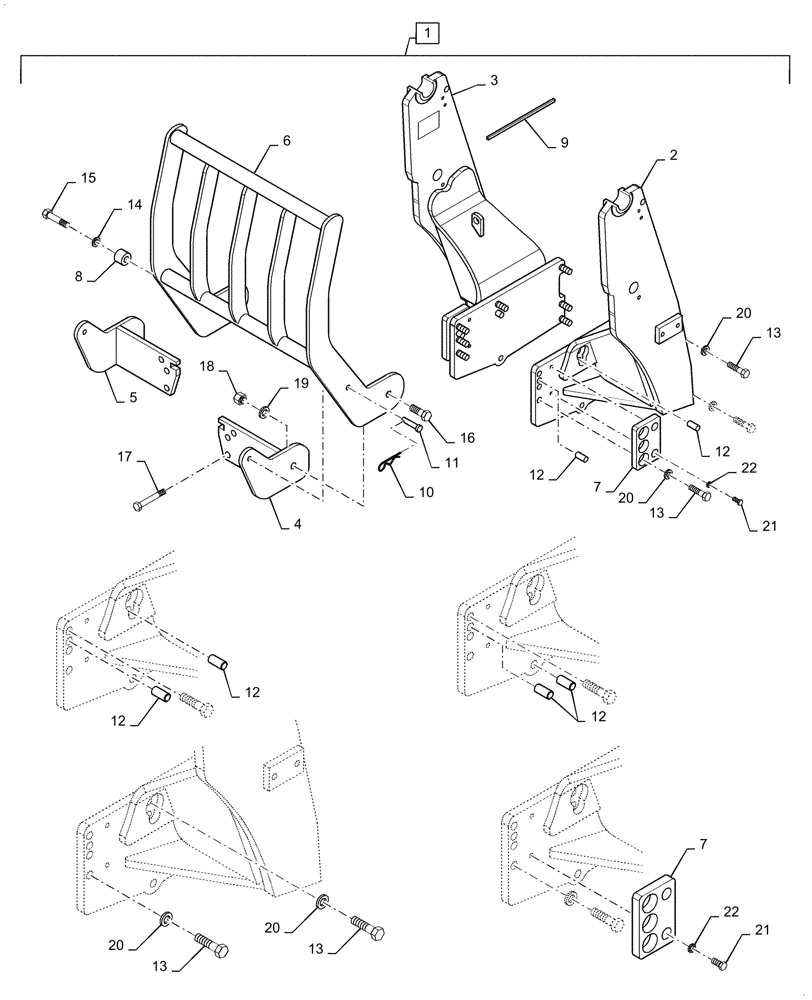

Запчасти Case IH L785 (39.100.340) - VAR - 713700016 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 22, Order Through Wholegoods 713700016

1шт.

Compatible Tractors - Magnum 180 - 225, T4, T4A, T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10386733

BRACKET

LH

1шт.

5

LDR10386734

BRACKET

RH

1шт.

6

LDR10389845

GUARD

Grille

1шт.

7

LDR60012751

PAD

Rubber

2шт.

8

LDR1109081

SPACER

2шт.

9

LDR10418364

RUBBER SEAL

Edge Cover

1шт.

10

LDR5221186

CLIP

Clip

2шт.

11

LDR5016207

LOCK PIN

2шт.

12

LDR60010101

PIN

4шт.

13

LDR5050545

BOLT

M20 x 2.5 x 75mm L, Cl 10.9

14шт.

14

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

2шт.

15

LDR5002210

BOLT

M20 x 90mm L, Cl 8.8

2шт.

16

LDR5002252

BOLT

M24 x 70mm L, Cl 8.8

2шт.

17

LDR5002216

BOLT

M20 x 120mm L, Cl 10.9

8шт.

18

LDR5011560

LOCK NUT

M24

2шт.

19

LDR5013128

LOCK WASHER

25mm ID x 45mm OD x 4mm Thk

2шт.

20

LDR5050552

WASHER

20.6mm ID x 37.3mm OD x 3.1mm Thk

14шт.

21

LDR5002102

SCREW

M12 x 30mm L, Cl 8.8

4шт.

22

LDR5013104

WASHER

13.5mm ID x 24mm OD x 2mm Thk

4шт.
