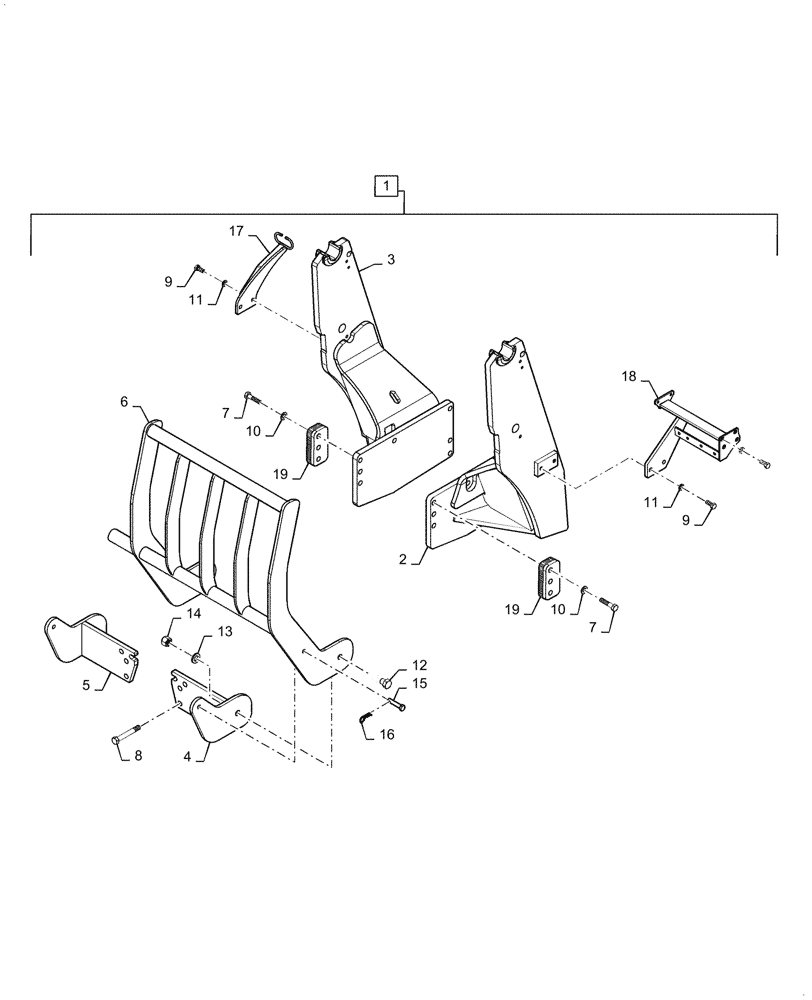

Запчасти Case IH L785 (39.100.330) - VAR - 730407006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 19, Order Through Wholegoods 730407006

1шт.

Compatible Tractors - Magnum 180 - 225, T3

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR10386733

BRACKET

Support, LH

1шт.

5

LDR10386734

BRACKET

Support, RH

1шт.

6

LDR10389845

GUARD

Grille

1шт.

7

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

14шт.

8

LDR5002216

BOLT

M20 x 120mm L, Cl 10.9

8шт.

9

LDR5002151

BOLT

M16 x 35mm L, Cl 8.8

4шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

14шт.

11

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

12

LDR5002252

BOLT

M24 x 70mm L, Cl 8.8

2шт.

13

LDR5013128

LOCK WASHER

25mm ID x 45mm OD x 4mm Thk

2шт.

14

LDR5011560

LOCK NUT

M24

2шт.

15

LDR5016207

LOCK PIN

Grille Guard

2шт.

16

LDR5016053

COTTER PIN

2шт.

17

LDR10389841

BRACKET

Supoort, RH

1шт.

Used On Magnum Tractors, Produced From 2009 - 2010, T3

1шт.

18

LDR10389839

BRACKET

Support, LH

1шт.

Used On Magnum Tractors, Produced Prior To October 2010, T1 - T3

1шт.

19

LDR324761

PAD

Subframe, Mounting

2шт.
