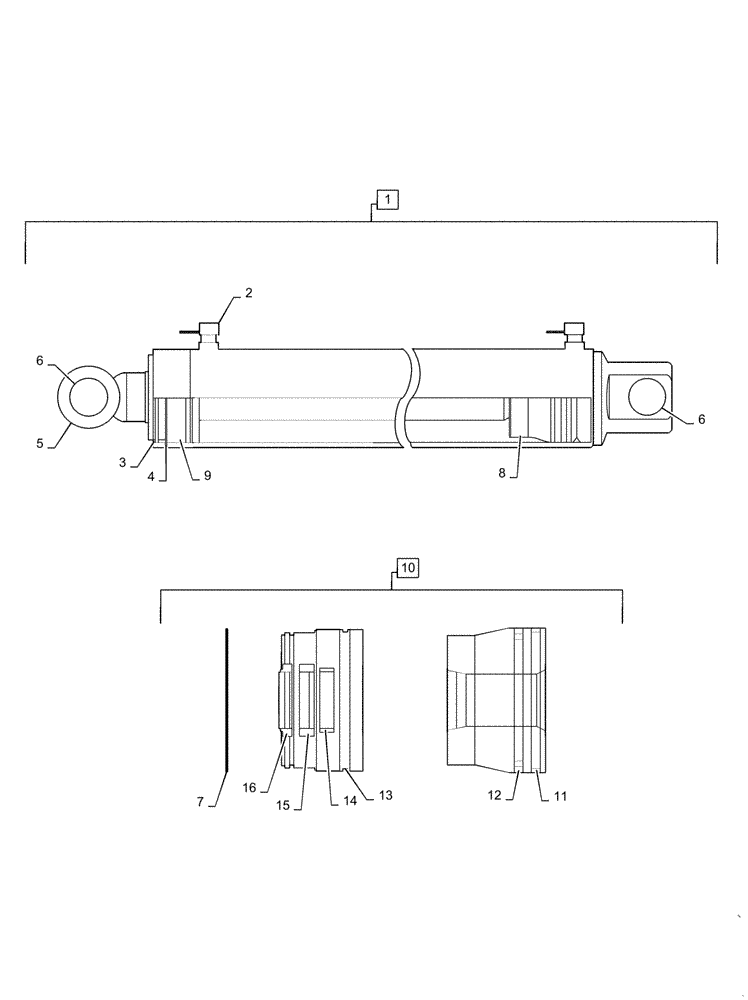

Запчасти Case IH L785 (35.701.070[01]) - LIFT ARM, HYDRAULIC CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12720110

CYLINDER

Lift Arm, Incl 2 - 9, 11 - 16

1шт.

2

LDR5026637

PLUG

Shipping

2шт.

3

LDR5040069

RING

Retaining

1шт.

4

LDR5040070

RING

Retaining

1шт.

5

LDR12712123

PISTON

Rod

1шт.

6

LDR5018514

BUSHING,35mm L

4шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, 78.3mm ID x 85.3mm OD x 3.53mm Thk, Incl in 1, 10

1шт.

8

LDR12720112

PISTON

Lift Cylinder

1шт.

9

LDR12720111

BEARING

Hydraulic Cylinder Housing

1шт.

10

LDR5034163

SEAL KIT

Services 1, Contains 7 Seals, Incl 7, 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 95mm ID x 95.5mm OD x 2.5mm Thk, Incl in 1, 10

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal, 78.5mm ID x 95.5mm OD x 6mm Thk, Incl in 1, 10

1шт.

13

NSS

NOT SOLD SEPARAT

Cover Seal, 90mm ID x 95mm OD x 2.5mm Thk, Incl in 1, 10

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 50mm ID x 55mm OD x 9.7mm Thk, Incl in 1, 10

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 50mm ID x 60mm OD x 10mm Thk, Incl in 1, 10

1шт.

16

NSS

NOT SOLD SEPARAT

Wiper, 50mm ID x 60mm OD x 7mm Thk, Incl in 1, 10

1шт.
