(35.525.AD[05]) - VAR - 717530006 - QUICK COUPLER RELEASE, 6 COUPLER W/ E - COMMAND

Запчасти Case IH L780 PRO (35.525.AD[05]) - VAR - 717530006 - QUICK COUPLER RELEASE, 6 COUPLER W/ E - COMMAND (35) - HYDRAULIC SYSTEMS

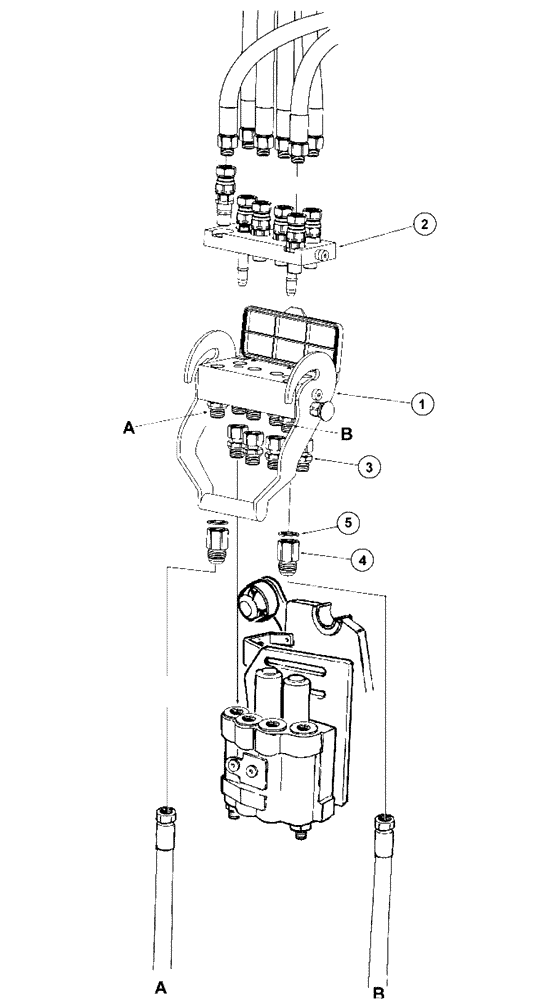

Схема запчастей Case IH L780 PRO - (35.525.AD[05]) - VAR - 717530006 - QUICK COUPLER RELEASE, 6 COUPLER W/ E - COMMAND (35) - HYDRAULIC SYSTEMS
2
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Fixed Part (Tractor)

1шт.

2

NS

NOT SERVICED

Mobile Part (Loader)

1шт.

3

LDR5044925

HYD CONNECTOR,M22 x 1.5 ORB x 1/2" NPT

M22/BSP 1/2"

1шт.

4

LDR11120459

COUPLING, QUICK, FEM

1-1/16-12 UNF-M22 x 1,5

2шт.

5

LDR5013905

WASHER

2шт.

Выбрано товаров: 5
