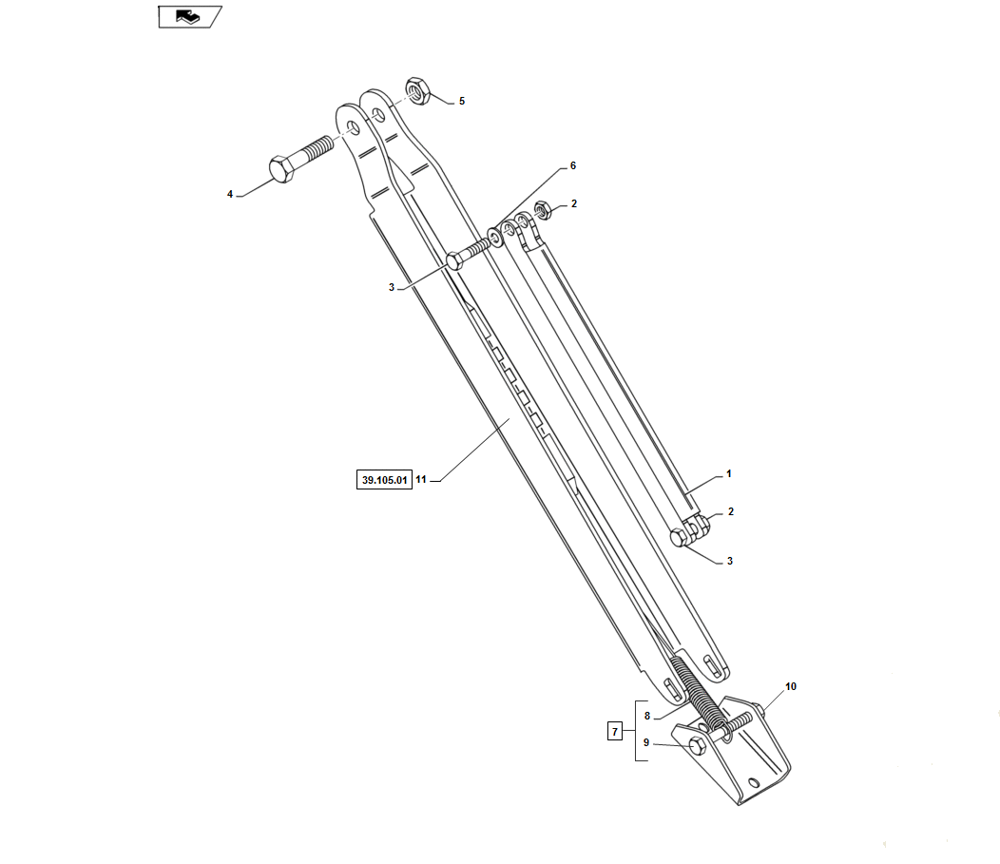

Запчасти Case IH L775 (39.129.AH) - SUPPORT LEG, L725, L735, L745, L755, L765, L775, L785, L795 (39) - FRAMES AND BALLASTING

1

LDR5218011C

STAY

L725 MSL, L725 NSL, L735 MSL, L735 NSL

1шт.

1

LDR5218012C

STAY

L745 MSL, L745 NSL, L755 MSL, L755 NSL, L765 MSL, L765 NSL

1шт.

1

LDR5218013C

STAY

L775 MSL, L785 MSL, L795 MSL

1шт.

2

LDR5011911

NUT,M12

M12

3шт.

3

LDR5002104

SCREW,M12 x 40mm

M6S 12x40

2шт.

4

LDR5002155

BOLT

M6S 16x60

1шт.

5

LDR5011569

NUT

1шт.

6

LDR5013103

WASHER,12mm ID x 22mm OD

BRB 12x22

1шт.

7

LDR4500097C

BRACKET, SUPPORTING

Foot Kit, Includes Ref. 8, 9 & 10

1шт.

8

LDR5021914

SPRING

1шт.
