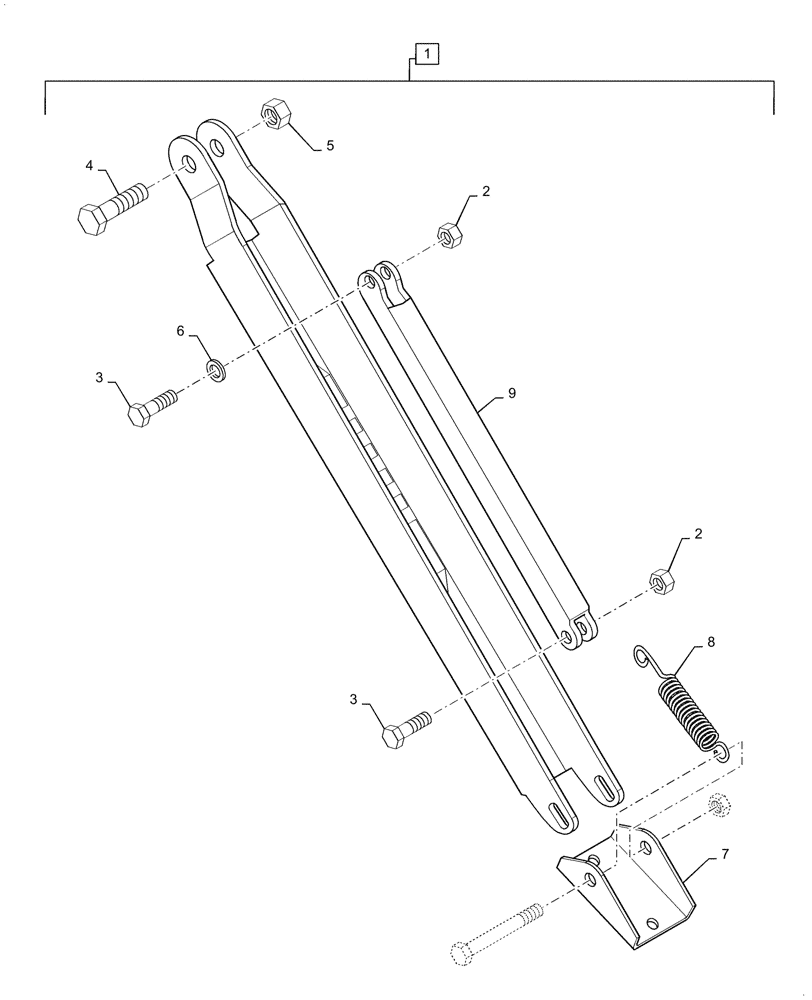

Запчасти Case IH L775 (39.129.030) - LOADER ARM, SUPPORT LEG (39) - FRAMES AND BALLASTING

1

LDR5218006C

STAND

Leg, Assy, Incl 2 - 9

1шт.

2

LDR5011911

NUT,M12

3шт.

3

LDR5002104

SCREW,M12 x 40mm

2шт.

4

LDR5002155

BOLT

M16 x 60mm L, Cl 8.8

1шт.

5

LDR5011569

NUT

M16

1шт.

6

LDR5013103

WASHER,12mm ID x 22mm OD

1шт.

7

LDR4500097C

BRACKET, SUPPORTING

Foot

1шт.

8

LDR5021914

SPRING

Foot Bracket, Tension

1шт.

9

LDR5218013C

STAY

Support Leg

1шт.
