(39.100.321[03]) - VAR - 713766006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017)

Запчасти Case IH L775 (39.100.321[03]) - VAR - 713766006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING

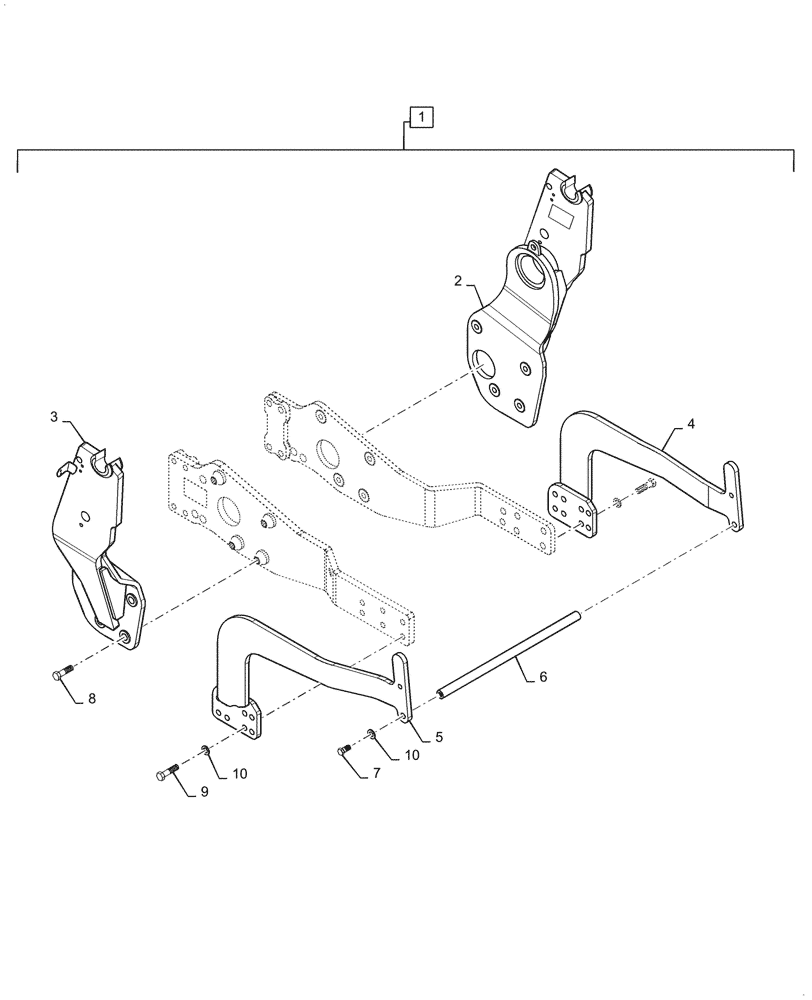

Схема запчастей Case IH L775 - (39.100.321[03]) - VAR - 713766006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING
10
1
7
6
4
9
8
5
3
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 10, Order Through Wholegoods 713766006

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

4

LDR60006856

GUARD

Grille, LH

1шт.

5

LDR60006858

GUARD

Grille, RH

1шт.

6

LDR10391809

CROSSBAR

Tie Rod

1шт.

7

LDR5002209

SCREW

M20 x 45mm L

2шт.

8

LDR5002220

BOLT

M20 x 70mm L

8шт.

9

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

8шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

10шт.
