(39.100.321[02]) - VAR - 713764006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017)

Запчасти Case IH L775 (39.100.321[02]) - VAR - 713764006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING

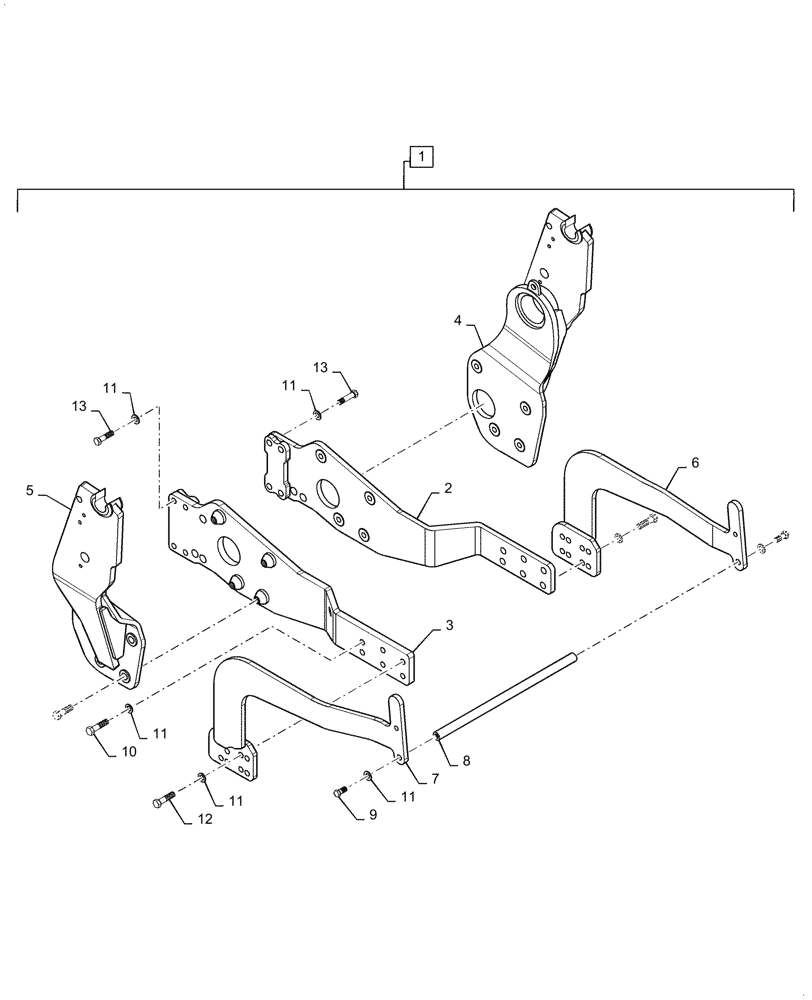

Схема запчастей Case IH L775 - (39.100.321[02]) - VAR - 713764006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING
12
6
13
2
4
13
1
8
11
5
11
7
3
11
9
11
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 13, Order Through Wholegoods 713764006

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

6

LDR60006856

GUARD

Grille, LH

1шт.

7

LDR60006858

GUARD

Grille, RH

1шт.

8

LDR10391809

CROSSBAR

Tie Rod

1шт.

9

LDR5002209

SCREW

M20 x 45mm L

2шт.

10

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

4шт.

11

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

22шт.

12

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

8шт.

13

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

8шт.
