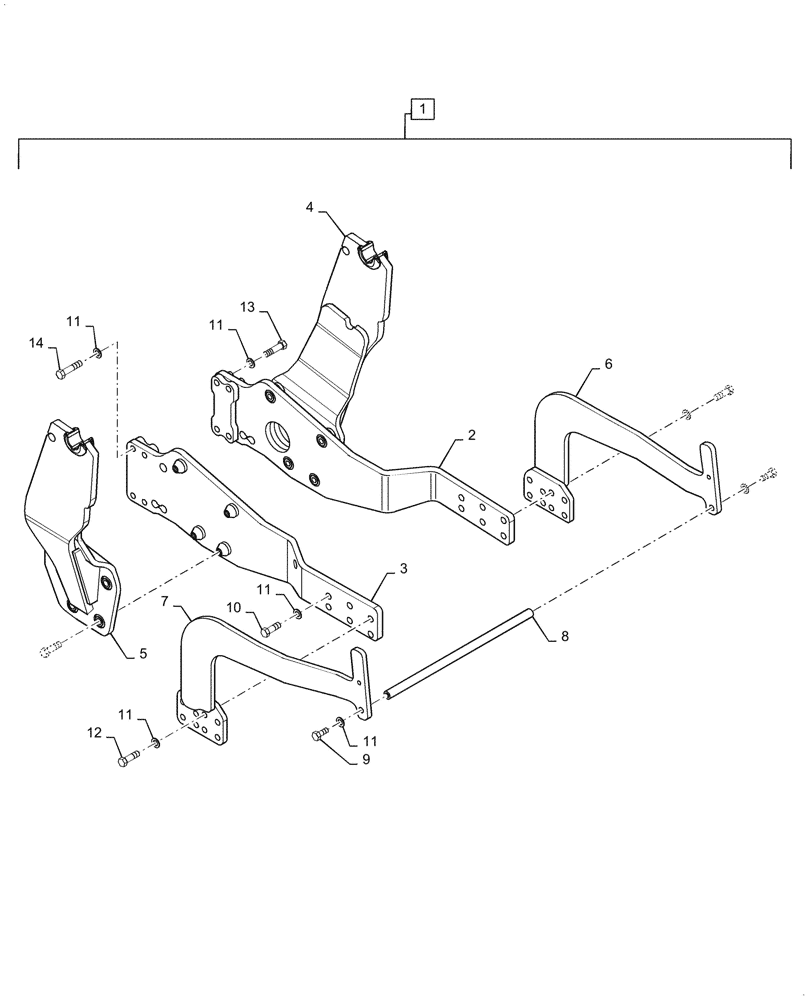

Запчасти Case IH L775 (39.100.320[01]) - VAR - 730784006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 730784006

1шт.

Compatible Tractors - Puma 170 - 240, T4/T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10391805

GUARD

Grille, LH

1шт.

7

LDR10391806

GUARD

Grille, RH

1шт.

8

LDR10391809

CROSSBAR

Tie Rod

1шт.

9

LDR5002209

SCREW

M20 x 45mm L

2шт.

10

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

4шт.

11

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

22шт.

12

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

8шт.

13

LDR5002212

BOLT,M20 x 90mm, Cl 10.9

8шт.

14

LDR5002222

BOLT

M20 x 100mm L, Cl 10.9

4шт.

Used on T3 Models, RH Subframe Bolts

1шт.
