(35.525.AA[24]) - VAR - 730682016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS

Запчасти Case IH L775 (35.525.AA[24]) - VAR - 730682016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS

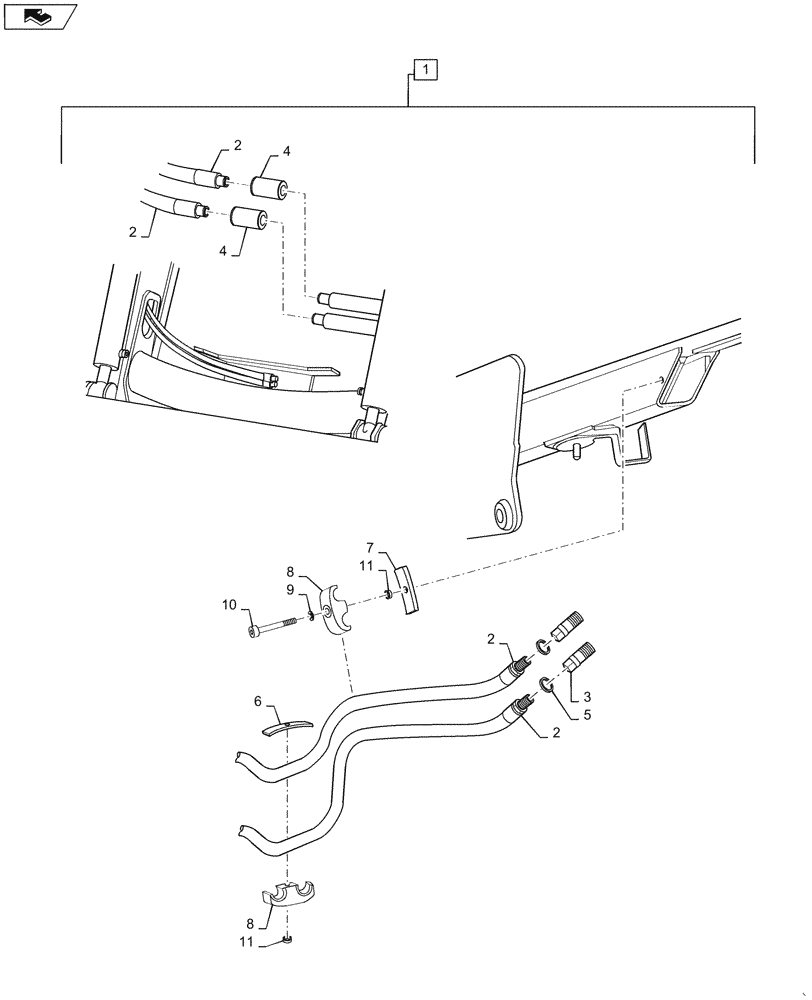

Схема запчастей Case IH L775 - (35.525.AA[24]) - VAR - 730682016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS
7
4
4
10
8
8
2
5
home
2
11
11
3
9
6
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Live 3 Function Hose Kit, Order from Wholegoods, 730682016. Incl 2 - 11 and parts on figure 35.204.09 14

1шт.

2

LDR9031182

HOSE

2шт.

3

LDR5044976

COUPLING

2шт.

4

LDR5027986

ADAPTER

2шт.

5

LDR5013853

WASHER

2шт.

6

LDR5220148

PLATE

1шт.

7

LDR5215163

BRACKET

1шт.

8

LDR5215161

CLAMP

2шт.

9

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

1шт.

10

LDR5004055

SCREW

1шт.

11

LDR5215162

CLAMP BRACKET

2шт.
