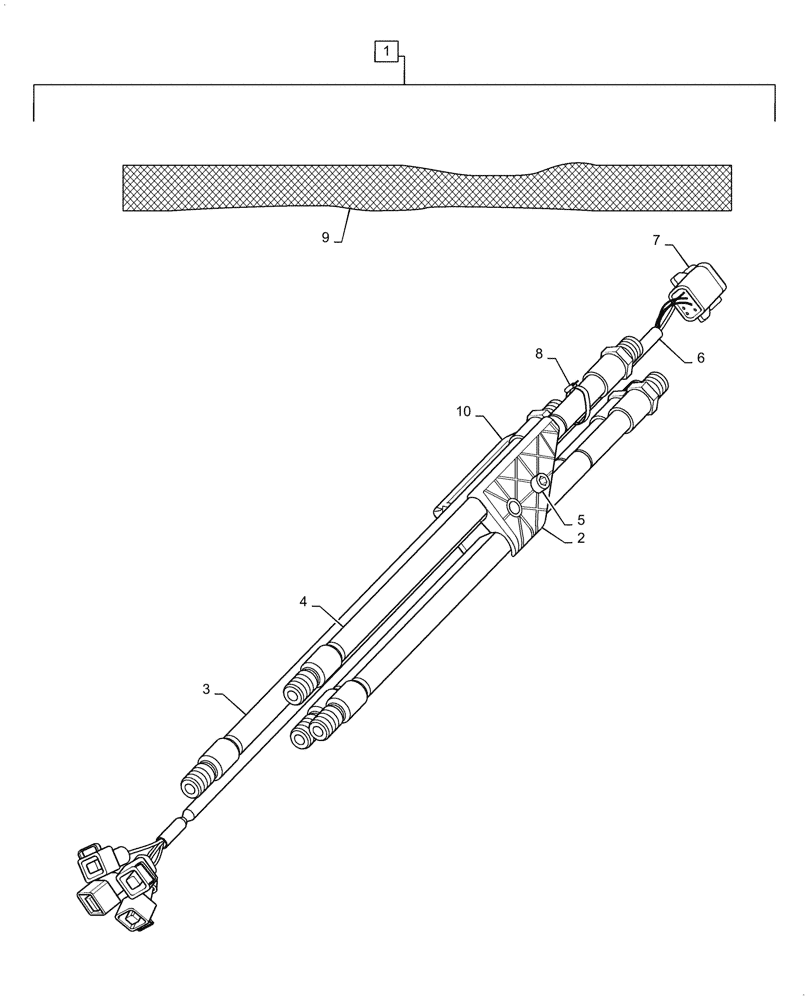

Запчасти Case IH L775 (35.310.070) - MAIN HOSE ASSY. (35) - HYDRAULIC SYSTEMS

1

LDR9031648

HOSE KIT

Main, Incl 2 - 10

1шт.

2

LDR5215051

CLAMP BRACKET

Outer

1шт.

3

LDR9032546

HYDRAULIC HOSE

1/2" OD x 3890mm L

1шт.

4

LDR9032517

HYDRAULIC HOSE

1/2" OD x 3850mm L

3шт.

5

LDR5004918

SCREW

M8 x 55mm L

1шт.

6

LDR5102197

ELECTRICAL WIRE

Main Hose Kit, 4400mm L

1шт.

7

LDR5101083

ELEC CONNECTOR

Main Control Valve

1шт.

8

LDR5033621

CABLE CLIP

Cable Tie

7шт.

9

LDR5033894

PROTECTIVE SLEEVE

850mm L

1шт.

10

LDR5215052

CLAMP BRACKET

Inner

1шт.
