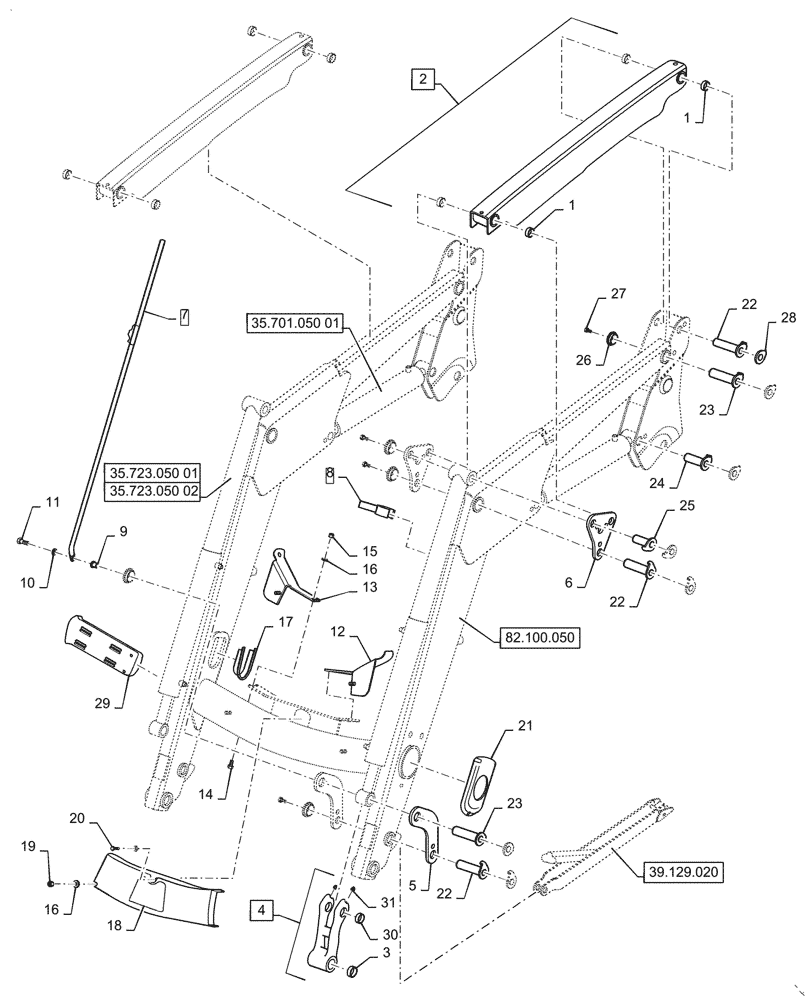

Запчасти Case IH L765 (39.101.050) - LOADER ARM FRAME - MSL (39) - FRAMES AND BALLASTING

1

LDR5018514

BUSHING,35mm L

4шт.

2

LDR5213534C

ROD

Parallel, Incl 1

2шт.

3

LDR5018904

BUSHING

2шт.

4

LDR5214832

LINK

Lower Bucket Cylinder, Incl 3, 30, 31

4шт.

5

LDR5214112C

LINK

Lower Support

4шт.

6

LDR5214127C

LINK/SHACKLE

Upper Bucket Cylinder

2шт.

7

LDR5215217

ROD

Indicator

1шт.

8

LDR5215208

HOLDER

Indicator Rod

1шт.

9

LDR5215227

SPACER

Indicator Rod

1шт.

10

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

1шт.

11

LDR5004920

SCREW

M10 x 50mm L

1шт.

12

LDR5211255

BRACKET

LH

1шт.

13

LDR5211256

BRACKET

RH

1шт.

14

LDR5006001

SCREW

M8 x 20mm L

1шт.

15

LDR5011553

NUT,M8

4шт.

16

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

5шт.

17

LDR5215101

PROTECTIVE COVER

Loader Arm Hydraulic Hose

2шт.

18

LDR5215021

VALVE COVER

Mid Mount

1шт.

19

LDR5011910

NUT

4шт.

20

LDR5002058

SCREW

M8 x 16mm L

1шт.

21

LDR5215192

COVER

Outer Loader Arm

2шт.

22

LDR9020035

PIVOT PIN,35mm OD x 127mm L

10шт.

23

LDR9020036

PIVOT PIN,40mm OD x 127mm L

4шт.

24

LDR9020038

PIVOT PIN,35.14mm OD x 106.42mm L

2шт.

25

LDR9020040

PIVOT PIN,35mm OD x 94.35mm L

Front, Lift Arm Cylinder

2шт.

26

LDR5215131

CAP,Locking Cover

22шт.

27

LDR5004917

SCREW,MC6S

22шт.

28

LDR5215121

CAP COVER

Pivot Pin

22шт.

29

LDR5215182

BOX

Loader Arm

1шт.

30

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

31

LDR5023005

LUBE NIPPLE

Greaser

2шт.
