(39.100.272[02]) - VAR - 713765006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017)

Запчасти Case IH L765 (39.100.272[02]) - VAR - 713765006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING

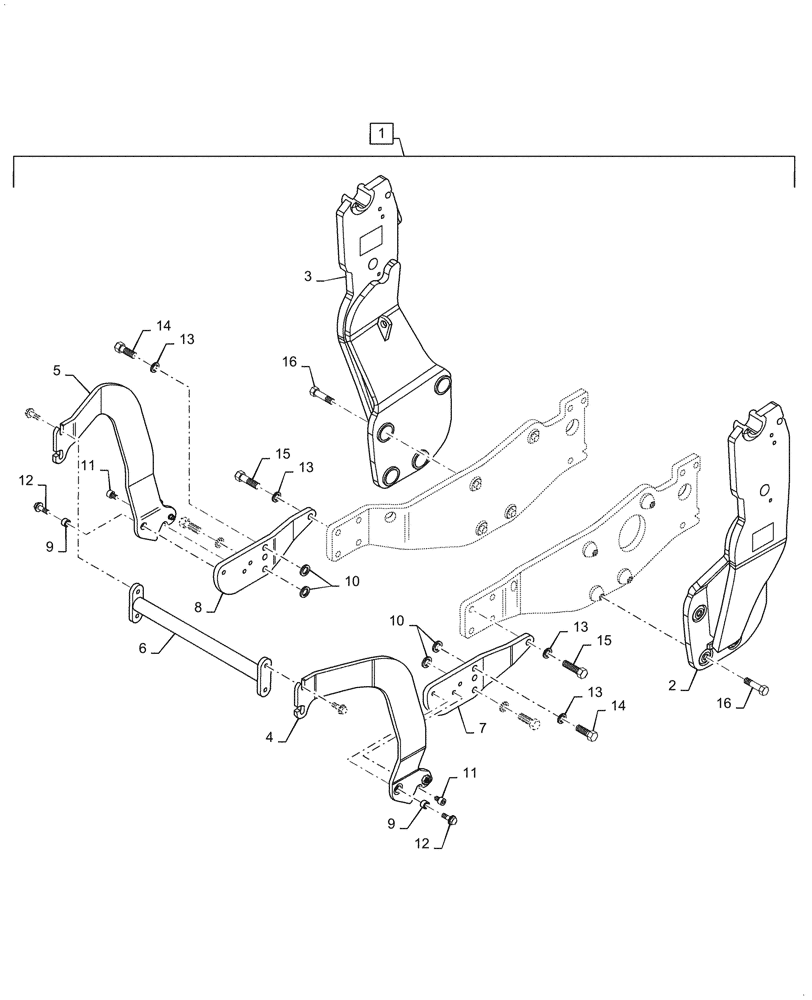

Схема запчастей Case IH L765 - (39.100.272[02]) - VAR - 713765006 - UPRIGHTS MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING
11
14
16
9
2
1
13
14
13
15
16
12
15
13
7
6
9
10
13
10
11
4
8
3
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Uprights, Incl 2 - 17, Order Through Wholegoods 713765006

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

4

LDR60007721

GUARD

Grille, LH

1шт.

5

LDR60007722

GUARD

Grille, RH

1шт.

6

LDR10418686

REINFORCEMENT

Cross Member

1шт.

7

LDR60007719

PLATE

LH

1шт.

8

LDR60007720

PLATE

RH

1шт.

9

LDR10418691

SPACER

Grille Guard

2шт.

10

LDR1109051

SPACER

Plate

4шт.

11

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

12

LDR5006042

SCREW

M16 x 20mm L, Cl 8.8

2шт.

13

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

6шт.

14

LDR5002958

SCREW

M20 x 65mm L, Cl 10.9

4шт.

15

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

2шт.

16

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

8шт.
