(39.100.272[01]) - VAR - 713763006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017)

Запчасти Case IH L765 (39.100.272[01]) - VAR - 713763006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING

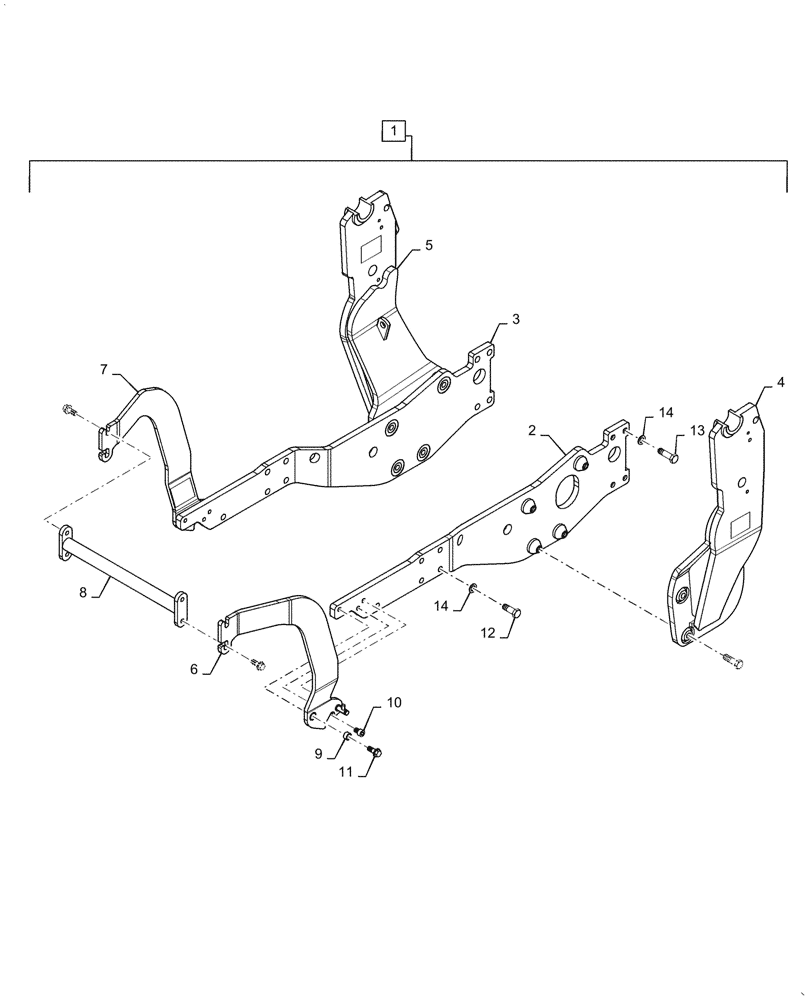

Схема запчастей Case IH L765 - (39.100.272[01]) - VAR - 713763006 - SUBFRAME MOUNTING PARTS (AFTER APRIL 1 2017) (39) - FRAMES AND BALLASTING
14
1
7
13
11
12
6
3
5
8
9
2
4
10
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 713763006

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR60007721

GUARD

Grille, LH

1шт.

7

LDR60007722

GUARD

Grille, RH

1шт.

8

LDR10418686

REINFORCEMENT

Cross Memeber

1шт.

9

LDR10418691

SPACER

Grille Guard

2шт.

10

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

11

LDR5006042

SCREW

M16 x 20mm L, Cl 8.8

2шт.

12

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

10шт.

13

LDR5002958

SCREW

M20 x 65mm L, Cl 10.9

8шт.

14

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

18шт.
