(39.100.271[02]) - VAR - 713748006 - UPRIGHTS, MOUNTING PARTS (AFTER NOV 1 2015)

Запчасти Case IH L765 (39.100.271[02]) - VAR - 713748006 - UPRIGHTS, MOUNTING PARTS (AFTER NOV 1 2015) (39) - FRAMES AND BALLASTING

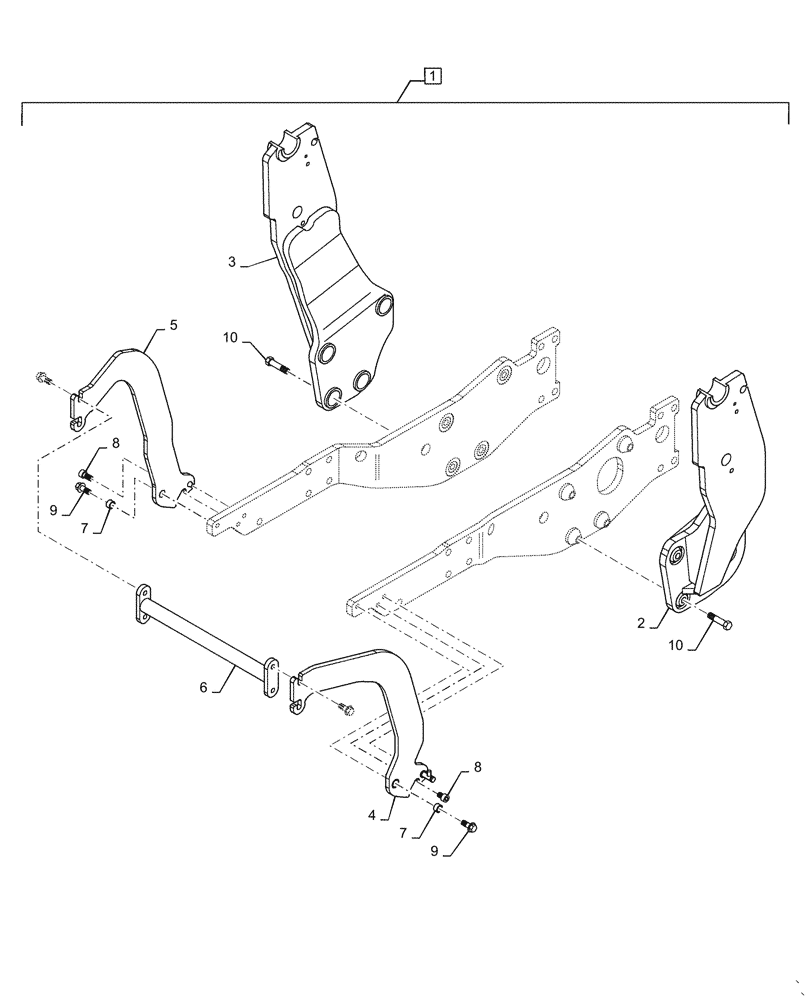

Схема запчастей Case IH L765 - (39.100.271[02]) - VAR - 713748006 - UPRIGHTS, MOUNTING PARTS (AFTER NOV 1 2015) (39) - FRAMES AND BALLASTING
10
3
7
2
10
7
6
5
8
1
9
9
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Uprights, Incl 2 - 10, Order Through Wholegoods 713748006

1шт.

Compatible Tractors - Puma 130/145/160 6 Cylinder, T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

4

LDR60007721

GUARD

Grille, LH

1шт.

5

LDR60007722

GUARD

Grille, RH

1шт.

6

LDR10418686

REINFORCEMENT

Cross Member

1шт.

7

LDR10418691

SPACER

Outer

1шт.

8

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

9

LDR5006042

SCREW

M16 x 20mm L, Cl 8.8

2шт.

10

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

8шт.
