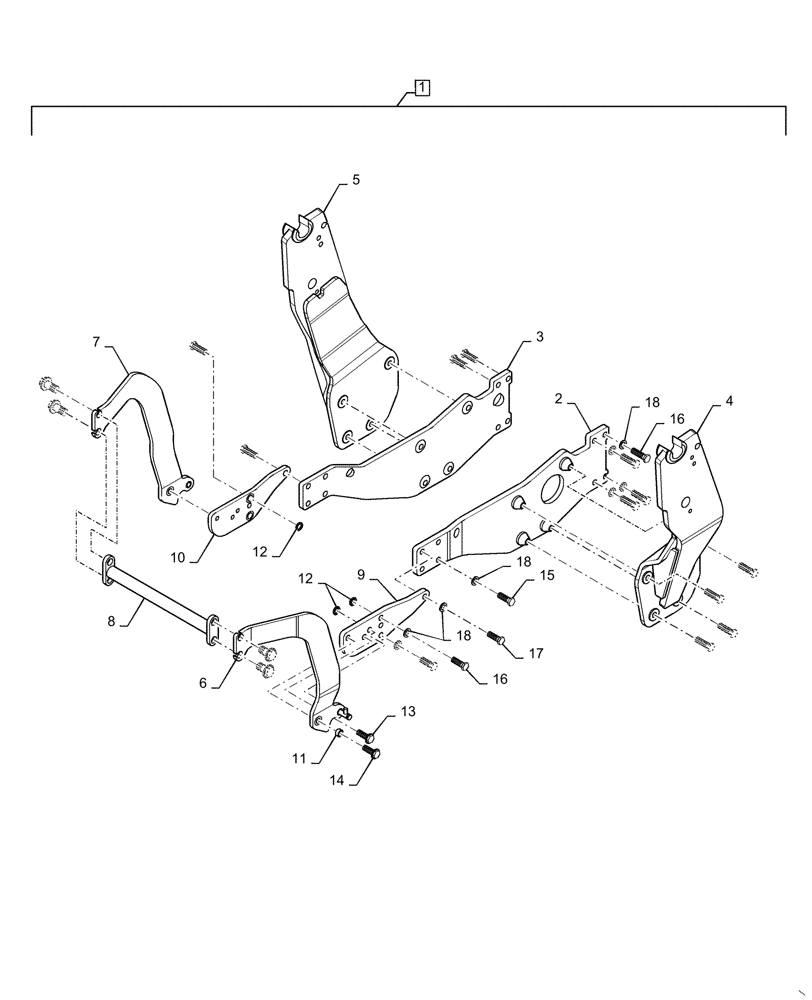

Запчасти Case IH L765 (39.100.271[01]) - VAR - 713745006 - SUBFRAME, MOUNTING PARTS (AFTER NOV 1 2015) (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe W/ Grille Guard, Incl 2 - 18, Order Through Wholegoods 713745006

1шт.

Compatible Tractors - Puma 130/145/160, 6 Cylinder, T4

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

6

LDR60007721

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

7

LDR60007722

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

8

LDR10418686

REINFORCEMENT

Cross Member

1шт.

9

LDR60007719

PLATE

LH

1шт.

10

LDR60007720

PLATE

RH

1шт.

11

LDR10418691

SPACER

Outer

2шт.

12

LDR1109051

SPACER

Inner

4шт.

13

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

14

LDR5006042

SCREW

M16 x 20mm L, Cl 8.8

2шт.

15

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

6шт.

16

LDR5002958

SCREW

M20 x 65mm L, Cl 10.9

12шт.

17

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

2шт.

18

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

20шт.
