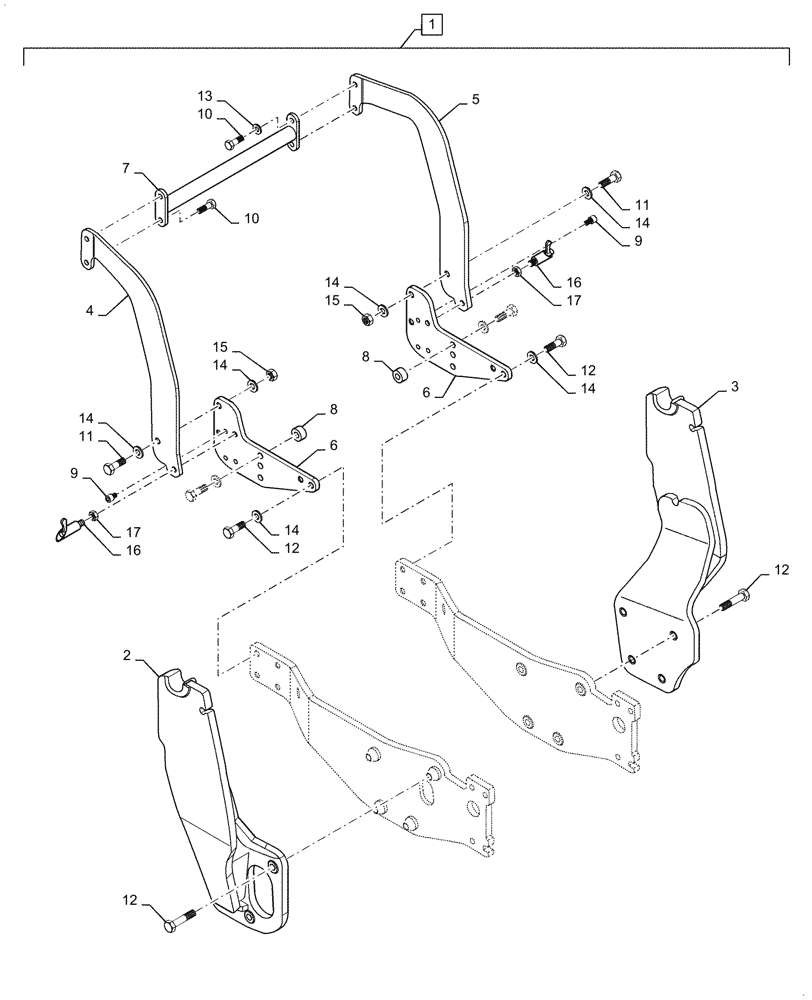

Запчасти Case IH L765 (39.100.270[02]) - VAR - 730812006 - UPRIGHTS, MOUNTING PARTS (BEFORE NOV 1 2015) (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Uprights, Incl 2 - 15, Order Through Wholegoods 730812006

1шт.

Compatible Tractors - Puma 130/145/160, 6 Cylinder, T4

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

4

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

5

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

6

LDR10411695

BRACKET, SUPPORTING

Grille Guard

2шт.

7

LDR10411696

BAR

Cross Member

1шт.

8

LDR1109053

SPACER

Sleeve, 25mm Thk

4шт.

9

LDR5004940

SCREW

M16 x 20mm L

2шт.

10

LDR5002170

SCREW

M16 x 30mm L

4шт.

11

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

2шт.

12

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

14шт.

13

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

14

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

10шт.

15

LDR5011559

LOCK NUT,M20

2шт.

16

LDR5016994

PIN

Locking

2шт.

17

LDR5011922

NUT

2шт.
