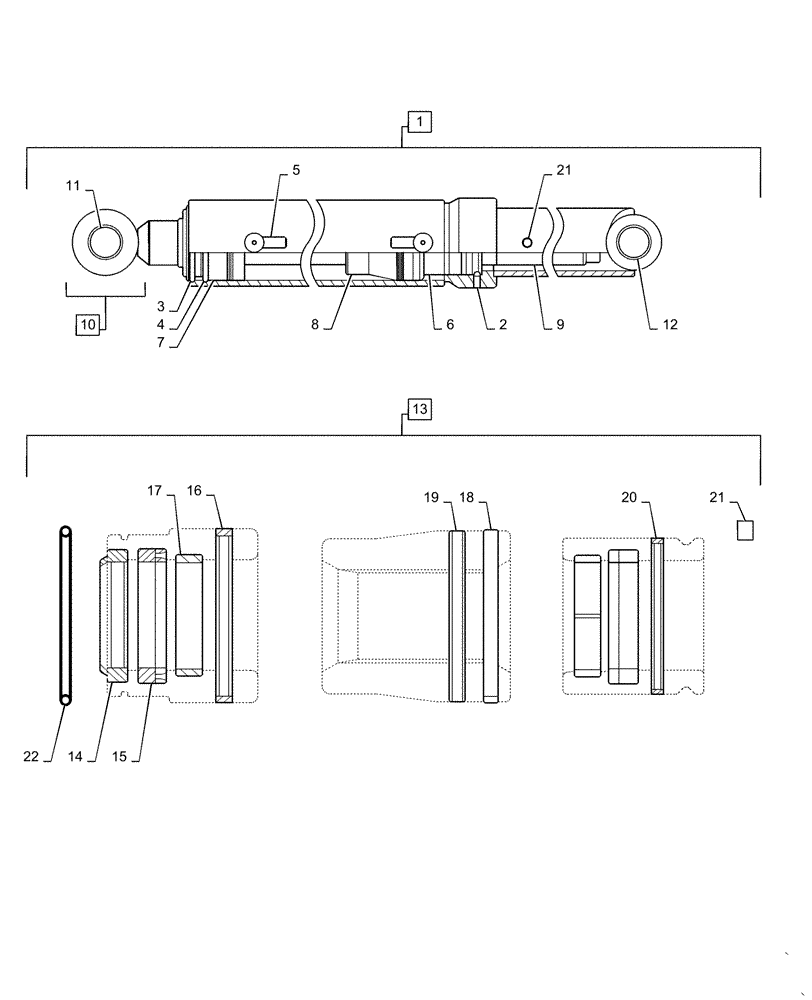

Запчасти Case IH L765 (35.723.050[01]) - BUCKET CYLINDER, HYDRAULIC CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12721110

CYLINDER

Incl 2 - 22

1шт.

2

LDR5006024

SCREW

Stop

2шт.

3

LDR5040069

RING

Retaining

1шт.

4

LDR5040070

RING

Retaining

1шт.

5

LDR5026637

PLUG

Shipping Plug

2шт.

6

LDR12700017

GUIDE

1шт.

7

LDR12721111

BEARING

1шт.

8

LDR12720112

PISTON

1шт.

9

LDR12700915

ROD

Rear

1шт.

10

LDR12713023

PISTON

Rod

1шт.

11

LDR5018513

BUSHING,40mm ID x 44mm OD x 20mm L

2шт.

12

LDR5018514

BUSHING,35mm L

2шт.

13

LDR5034159

SEAL KIT

Services 1, Contains 11 Seals Incl 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 13

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 13

2шт.

16

NSS

NOT SOLD SEPARAT

Cover Seal, 90mm ID x 95mm OD x 5.5mm Thk, Incl in 1, 13

1шт.

17

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 13

2шт.

18

NSS

NOT SOLD SEPARAT

Guide Ring, 95mm ID x 5.5mm Thk, Incl in 1, 13

1шт.

19

NSS

NOT SOLD SEPARAT

Piston Seal, 78.5mm ID x 95.5mm OD x 6mm Thk, Incl in 1, 13

1шт.

20

NSS

NOT SOLD SEPARAT

Cover Seal, 52.4mm ID x 58mm OD x 3.6mm Thk, Incl in 1, 13

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 13

1шт.

22

NSS

NOT SOLD SEPARAT

O - Ring, 78.3mm ID x 85.3mm OD x 3.53mm Thk, Incl in 1, 13

1шт.
