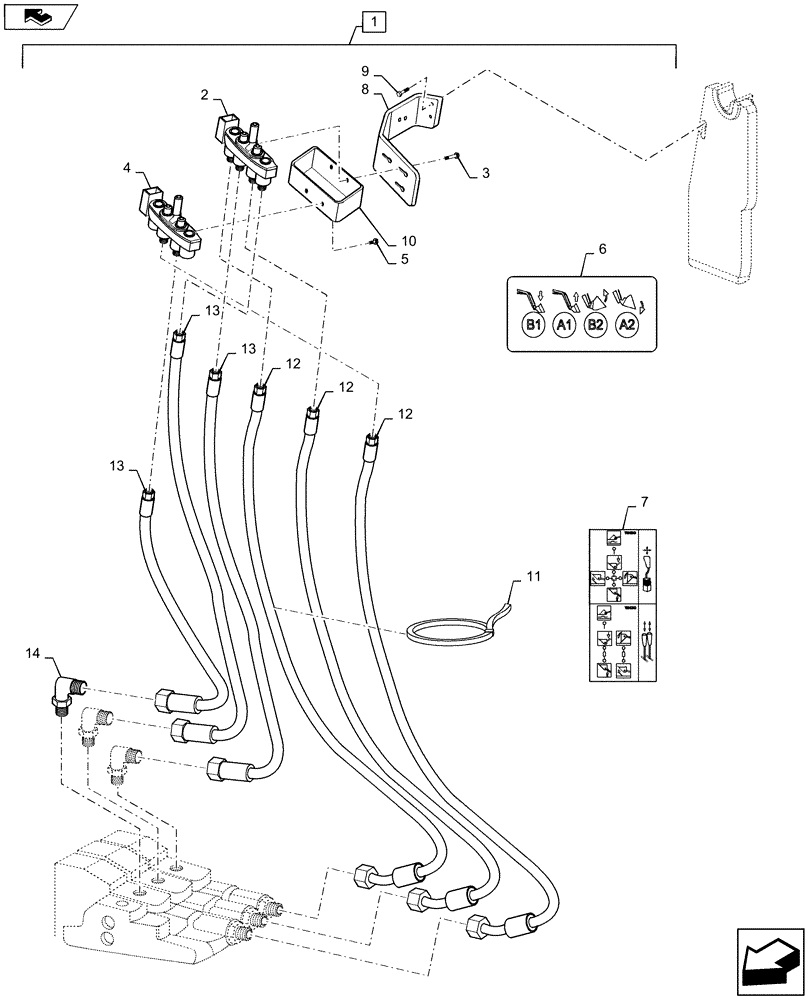

Запчасти Case IH L765 (35.534.AC[04]) - VAR - 713613006 - MMV HYDRAULIC HOSE KIT - 3 FUNCTION - MC4/2 FOR ALL PUMA MODELS (35) - HYDRAULIC SYSTEMS

1

713613006

SERVICE KIT

3 Function Mid Mount Valve Hose, Incl 2 - 14 and Parking Support on fig 35.204.06 04

1шт.

2

LDR5044990

COUPLING,MC4 J 7/8"

1шт.

3

LDR5006017

SCREW,M8 x 30

2шт.

4

LDR5044992

COUPLING,MC2 J 7/8"

1шт.

5

LDR5006000

SCREW,M8 x 20, Cl 8.8

2шт.

6

LDR11135173

DECAL

1шт.

7

LDR11134370

DECAL

1шт.

8

LDR10391712

BRACKET

1шт.

9

LDR5005999

SCREW,M10 x 45mm

2шт.

10

LDR10413875

BRACKET, SUPPORTING

1шт.

11

LDR5033606

CABLE TIE

6шт.

12

LDR9032076

FLEXIBLE HOSE,1100mm L

3шт.

13

LDR9032058

FLEXIBLE HOSE,1300mm L

3шт.

14

LDR5028048

ADAPTER,M18 x 1.5 - 13/16" UNF

3шт.
