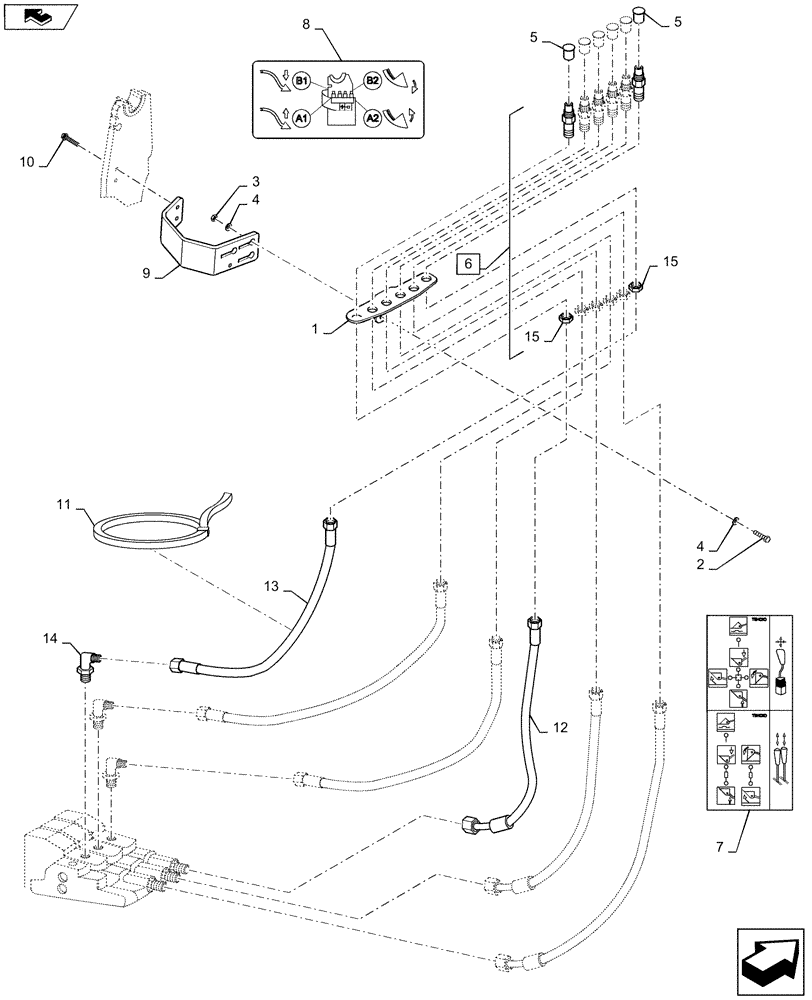

Запчасти Case IH L765 (35.534.AC[02]) - VAR - 713629006 - MMV HYDRAULIC HOSE KIT - 3 FUNCTION FOR ALL PUMA MODELS (35) - HYDRAULIC SYSTEMS

1

LDR10414058

BRACKET

1шт.

2

LDR5002053

SCREW,M8 x 30mm L

2шт.

3

LDR5011053

NUT

2шт.

4

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

5

LDR5040090

DUST CAP

6шт.

6

LDR5044983

QUICK MALE COUPLING

Incl 15

6шт.

7

LDR11134370

DECAL

1шт.

8

LDR11136095

DECAL

1шт.

9

LDR10391712

BRACKET

1шт.

10

LDR5005999

SCREW,M10 x 45mm

2шт.

11

LDR5033606

CABLE TIE

6шт.

12

LDR9032076

FLEXIBLE HOSE,1100mm L

3шт.

13

LDR9032058

FLEXIBLE HOSE,1300mm L

3шт.

14

LDR5028048

ADAPTER,M18 x 1.5 - 13/16" UNF

3шт.

15

NSS

NOT SOLD SEPARAT

Nut, Incl in 6

6шт.
