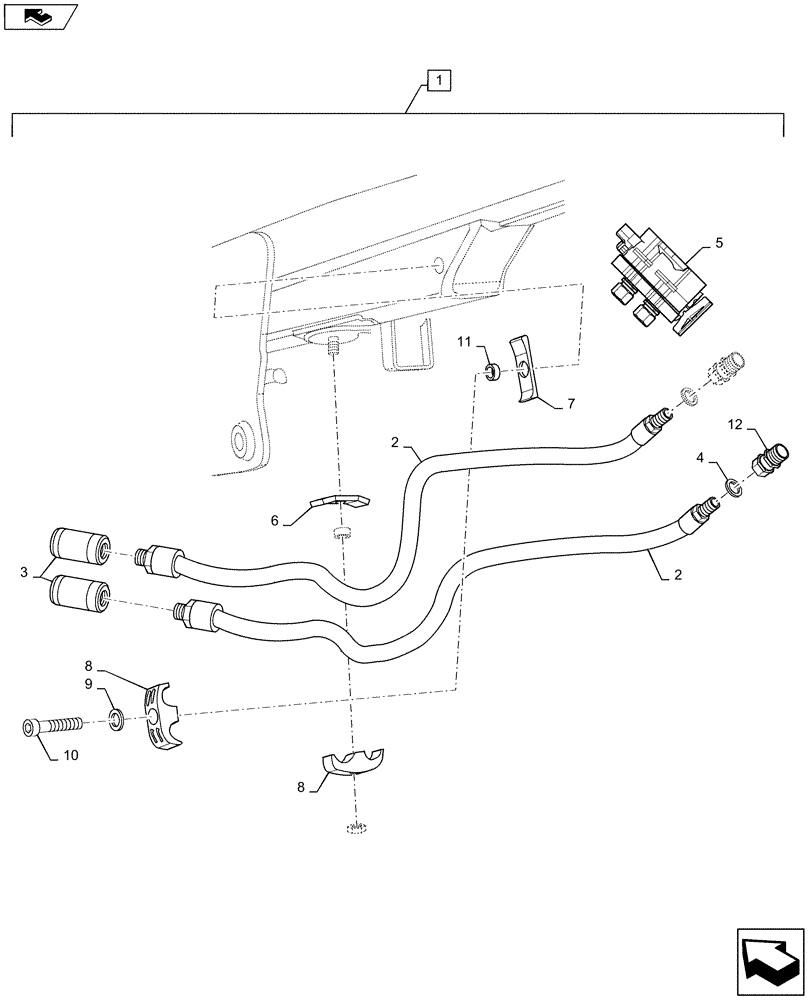

Запчасти Case IH L765 (35.525.AA[22]) - VAR - 713603006 - LIVE 3 FUNCTION HOSE KIT WITH MC-2 COUPLING (35) - HYDRAULIC SYSTEMS

1

NS

NOT SERVICED

Live 3 Function LCS Hose Kit, order from Wholegoods 713603006. Incl 2 - 12

1шт.

2

LDR9031181

HOSE ASSY.

2шт.

3

LDR5027986

ADAPTER

2шт.

4

LDR5013853

WASHER

2шт.

5

LDR5044950

COUPLING

1шт.

6

LDR5220148

PLATE

1шт.

7

LDR5215163

BRACKET

1шт.

8

LDR5215161

CLAMP

2шт.

9

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

1шт.

10

LDR5004055

SCREW

1шт.

11

LDR5215162

CLAMP BRACKET

2шт.

12

LDR5044976

COUPLING

2шт.
