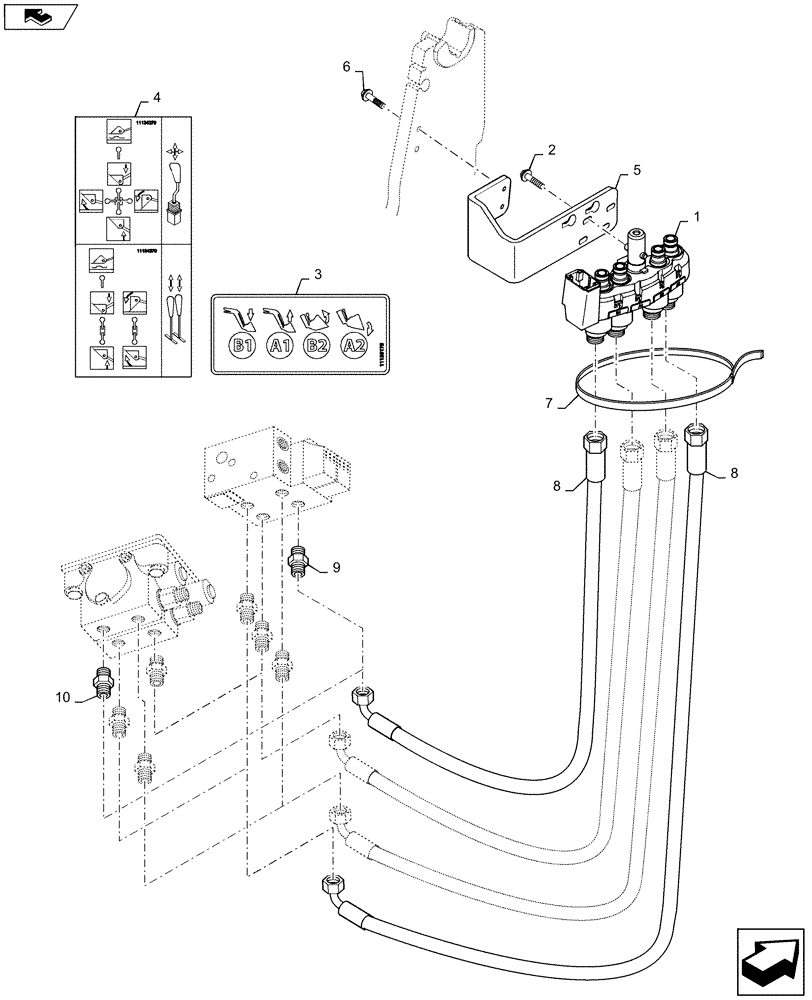

Запчасти Case IH L765 (35.525.AA[01]) - VAR - 713664006 - 2 FUNCTION MULTI COUPLER HOSE KIT FOR MAXXUM 110, 115, 120, 125, 130, 140 (35) - HYDRAULIC SYSTEMS

1

LDR5044952

COUPLING,MC4 J, 7/8"

1шт.

2

LDR5006018

SCREW,M8 x 25mm

2шт.

3

LDR11135173

DECAL

1шт.

4

LDR11134370

DECAL

1шт.

5

LDR10415124

BRACKET

Coupler Mounting

1шт.

6

LDR5005999

SCREW,M10 x 45mm

2шт.

7

LDR5033606

CABLE TIE

4шт.

8

LDR9032192

HYDRAULIC HOSE,1400mm L

4шт.

9

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

Mechanical Valve Connection

4шт.

10

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

Electrohydraulic Valve Connection

4шт.
