(35.525.360) - VAR - 713739006 - 3RD FUNCTION, HYDRAULIC HOSE KIT

Запчасти Case IH L765 (35.525.360) - VAR - 713739006 - 3RD FUNCTION, HYDRAULIC HOSE KIT (35) - HYDRAULIC SYSTEMS

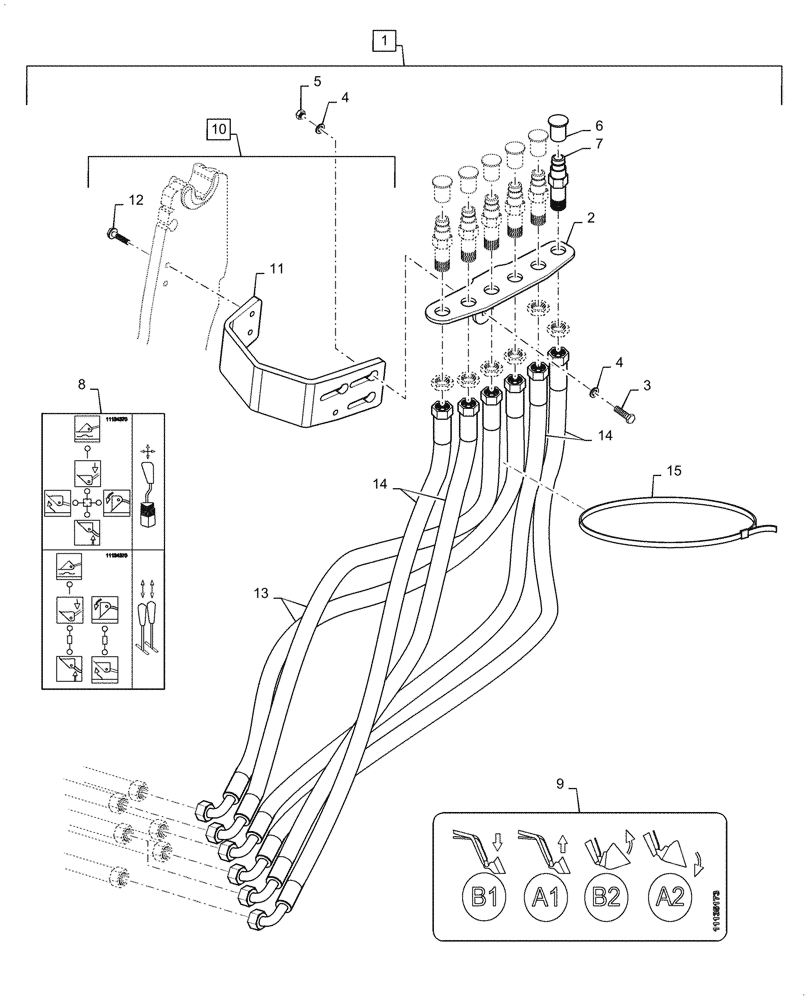

Схема запчастей Case IH L765 - (35.525.360) - VAR - 713739006 - 3RD FUNCTION, HYDRAULIC HOSE KIT (35) - HYDRAULIC SYSTEMS
14
12
15
11
13
6
14
8
10
4
9
7
4
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hydraulic Hose Kit, 3rd Function, Incl 2 - 15, Order Through Wholegoods 713739006

1шт.

2

LDR10414058

BRACKET

Support

1шт.

3

LDR5002053

SCREW,M8 x 30mm L

2шт.

4

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

5

LDR5011053

NUT

M8

2шт.

6

LDR5040090

DUST CAP

Coupling

6шт.

7

LDR5044983

QUICK MALE COUPLING

Hydraulic

6шт.

8

LDR11134370

DECAL

Joystick Operation

1шт.

9

LDR11135173

DECAL

Bucket Operation

1шт.

10

LDR10391887

BRACKET

Support, Assy, Incl 11, 12

1шт.

11

LDR10391712

BRACKET

Support

1шт.

12

LDR5005999

SCREW,M10 x 45mm

2шт.

13

LDR5050181

HOSE

1/2" OD x 700mm L

2шт.

14

LDR5050168

HOSE

1/2" OD x 800mm L

4шт.

15

LDR5033606

CABLE TIE

Strap

6шт.
