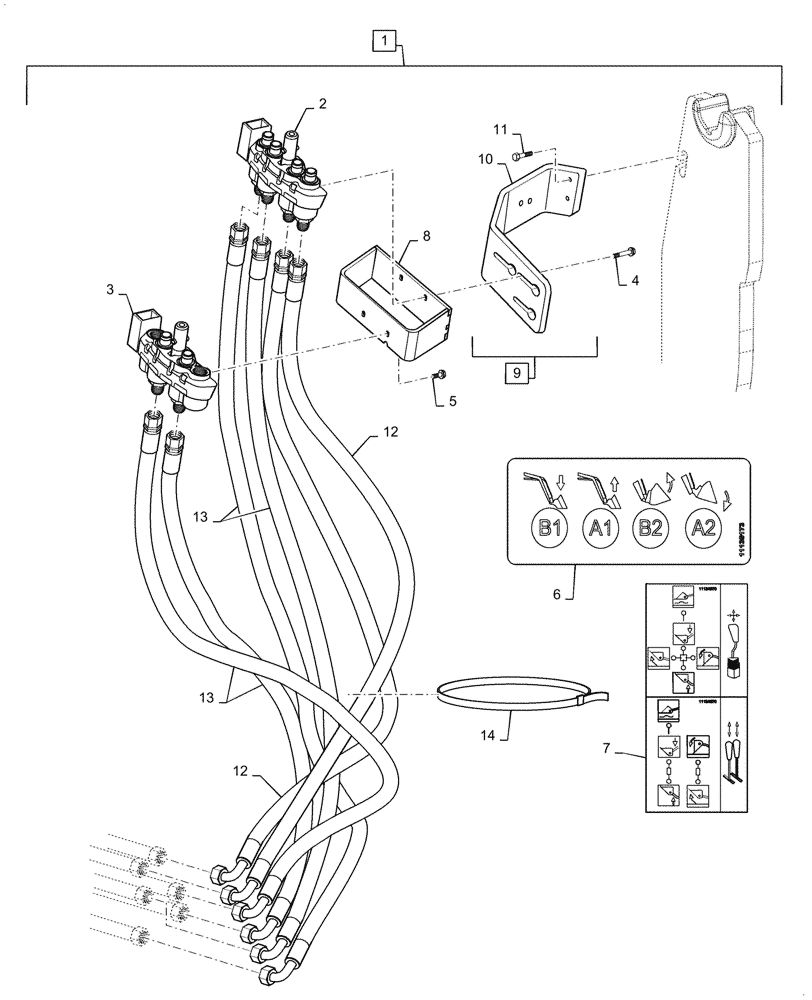

Запчасти Case IH L765 (35.525.320) - VAR - 713735006 - 3RD FUNCTION, HYDRAULIC HOSE KIT (W/ MC4/MC2) (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Hose Kit, 3rd Function, Incl 2 - 14, Order Through Wholegoods 713735006

1шт.

2

LDR5044990

COUPLING,MC4 J 7/8"

Valve

1шт.

3

LDR5044992

COUPLING,MC2 J 7/8"

Valve

1шт.

4

LDR5006017

SCREW,M8 x 30

2шт.

5

LDR5006000

SCREW,M8 x 20, Cl 8.8

2шт.

6

LDR11135173

DECAL

Bucket Operation

1шт.

7

LDR11134370

DECAL

Joystick Operation

1шт.

8

LDR10413875

BRACKET, SUPPORTING

1шт.

9

LDR10391887

BRACKET

Assy, Incl 10, 11

1шт.

10

LDR10391712

BRACKET

Support

1шт.

11

LDR5005999

SCREW,M10 x 45mm

2шт.

12

LDR5050181

HOSE

1/2" OD x 700mm L

2шт.

MC4 Coupler ONLY

1шт.

13

LDR5050168

HOSE

1/2" OD x 800mm L

4шт.

MC2 and MC4 Coupler

1шт.

14

LDR5033606

CABLE TIE

Strap

6шт.
