(90.116.020) - VAR - 713742006 - HEAVY DUTY GRILLE GUARD

Запчасти Case IH L765 (90.116.020) - VAR - 713742006 - HEAVY DUTY GRILLE GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

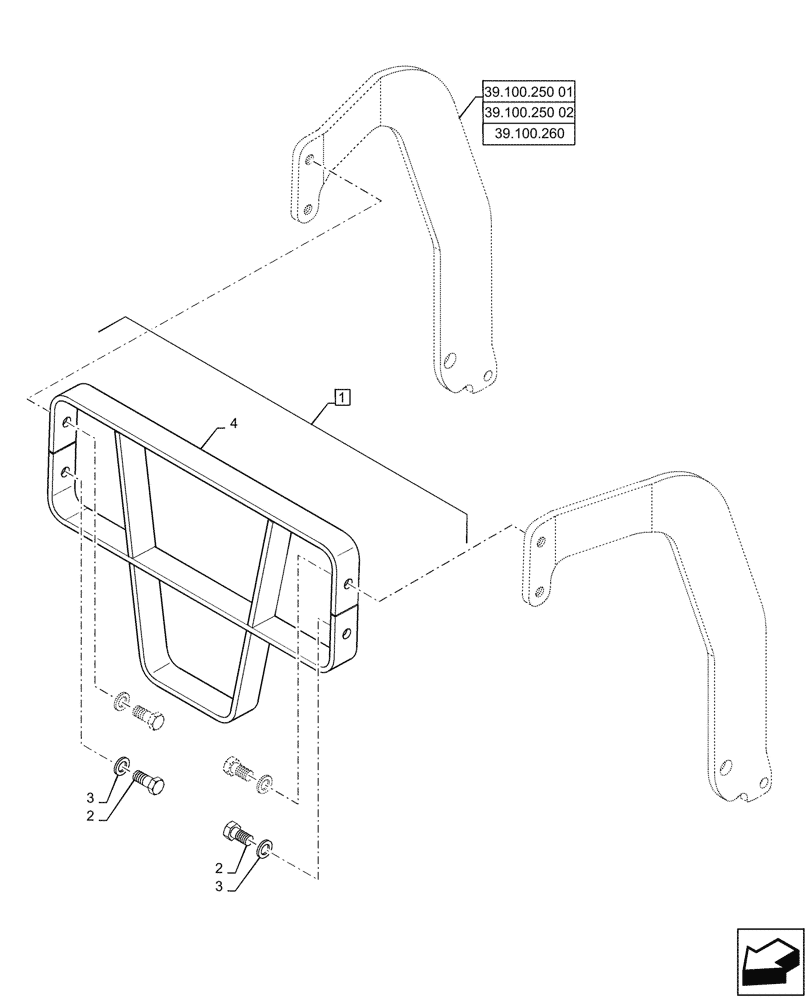

Схема запчастей Case IH L765 - (90.116.020) - VAR - 713742006 - HEAVY DUTY GRILLE GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.260
3
2
1
3
2
4
39.100.250 01
39.100.250 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Heavy Duty Grille Guard, Incl 2 - 4, Order Through Wholegoods 713742006

1шт.

2

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

3

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

4

LDR10391328

GUARD

Grille

1шт.
