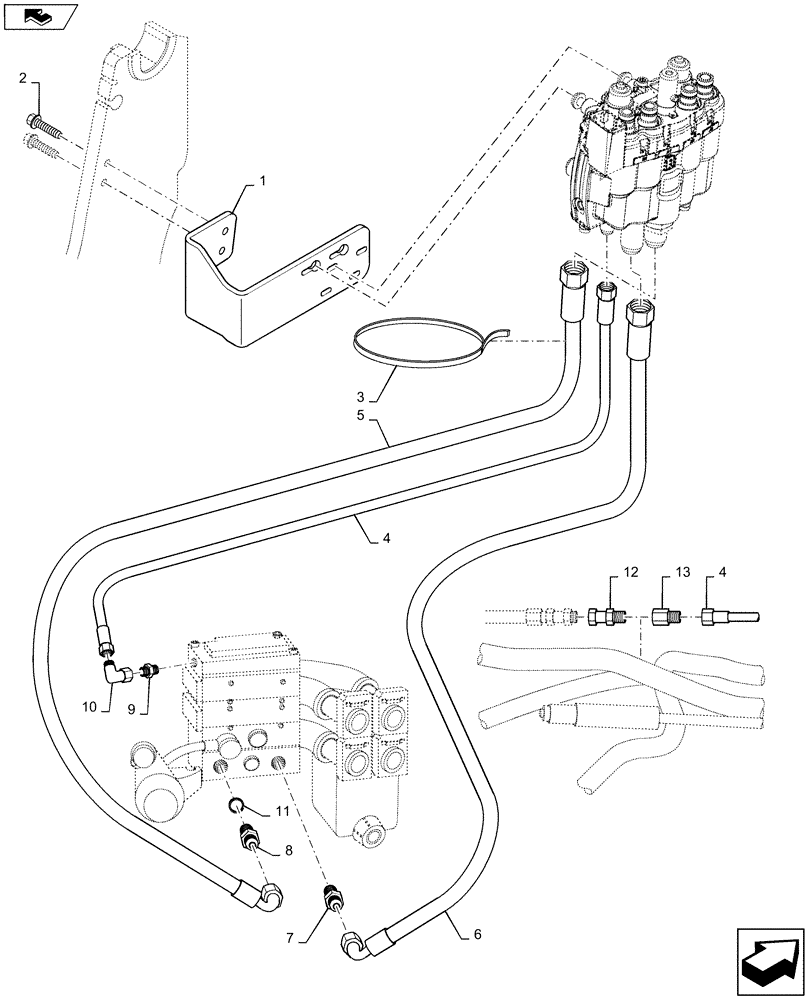

Запчасти Case IH L765 (35.102.AE[01]) - VAR - 713600016 - 3 FUNCTION ELECTRONIC LOADER MOUNTED VALVE KIT - HYDRAULIC HOSES - FOR MAXXUM 110, 115, 120, 125, 130, 140 W/ CCLS (35) - HYDRAULIC SYSTEMS

1

LDR10415124

BRACKET

1шт.

2

LDR5005999

SCREW,M10 x 45mm

2шт.

3

LDR5033606

CABLE TIE

6шт.

4

LDR9030851

HYDRAULIC HOSE,3200mm L

1шт.

5

LDR9032198

HYDRAULIC HOSE,3600mm L

1шт.

6

LDR9030971

HOSE,3200mm L

1шт.

7

LDR5027940

END FITTING

1шт.

8

LDR11120465

END FITTING,1 1/16" UNF JIC - M27 x 2

1шт.

9

LDR5027959

END FITTING

1шт.

10

LDR5027803

ELBOW

1шт.

11

LDR5013854

WASHER,M20

1шт.

12

LDR5028205

ADAPTER

1шт.

13

LDR5028206

ADAPTER

1шт.
