(35.100.AR[02]) - LOADER ARM HYDRAULICS - MSL

Запчасти Case IH L765 (35.100.AR[02]) - LOADER ARM HYDRAULICS - MSL (35) - HYDRAULIC SYSTEMS

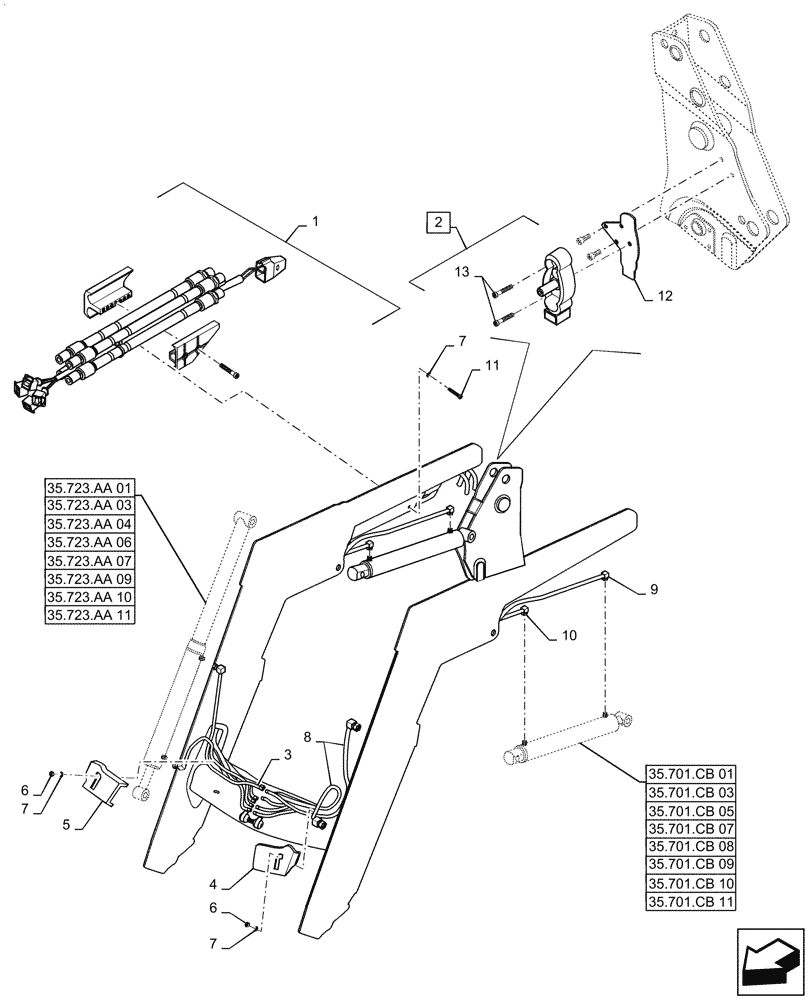

Схема запчастей Case IH L765 - (35.100.AR[02]) - LOADER ARM HYDRAULICS - MSL (35) - HYDRAULIC SYSTEMS
35.723.aa 11
35.701.cb 01
35.723.aa 03
6
35.701.cb 05
7
12
35.723.aa 04
7
1
35.723.aa 06
11
35.723.aa 01
8
35.701.cb 03
35.701.cb 08
3
5
2
9
10
4
6
35.723.aa 07
7
35.701.cb 07
13
35.701.cb 10
35.723.aa 10
35.701.cb 11
35.723.aa 09
35.701.cb 09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR9031650

HOSE KIT

Main Hose, L725 MSL

1шт.

1

LDR9031644

HOSE KIT

Main Hose, L735 MSL

1шт.

1

LDR9032574

HOSE KIT

Main Hose, L745 MSL

1шт.

1

LDR9031647

HOSE KIT

Main Hose, L765 MSL

1шт.

1

LDR9031648

HOSE KIT

Main Hose, L775 MSL

1шт.

1

LDR9031654

HOSE KIT

Main Hose, L785 MSL

1шт.

1

LDR5034101

HOSE KIT

Main Hose, L795 MSL

1шт.

2

LDR5034234

SUPPORT

Parking, Incl 13

1шт.

3

LDR10550510

BLOCK VALVE FOR REMO

Compact

1шт.

4

LDR5220601

COVER

Hose Clamp, LH

1шт.

5

LDR5220603

COVER

Hose Clamp, RH

1шт.

6

LDR5011910

NUT

2шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

8

LDR9031142

FLEXIBLE HOSE

Bucket Lift Cylinder

4шт.

L735, L745, L755, L775

1шт.

8

LDR9031144

FLEXIBLE HOSE

Bucket Lift Cylinder

4шт.

L785

1шт.

8

LDR9031140

FLEXIBLE HOSE

Bucket Lift Cylinder

4шт.

L795

1шт.

9

LDR9031142

FLEXIBLE HOSE

Top, Boom Lift Cylinder

2шт.

L725

1шт.

9

LDR9031735

HOSE

Top, Boom Lift Cylinder

2шт.

L795

1шт.

10

LDR9031734

HOSE

Bottom, Boom Lift Cylinder

2шт.

L795

1шт.

11

LDR5005128

SCREW

1шт.

12

LDR5034122

BRACKET

Parking Support

1шт.

13

NSS

NOT SOLD SEPARAT

Parking Support Mounting Bolt, Incl in 2

2шт.
