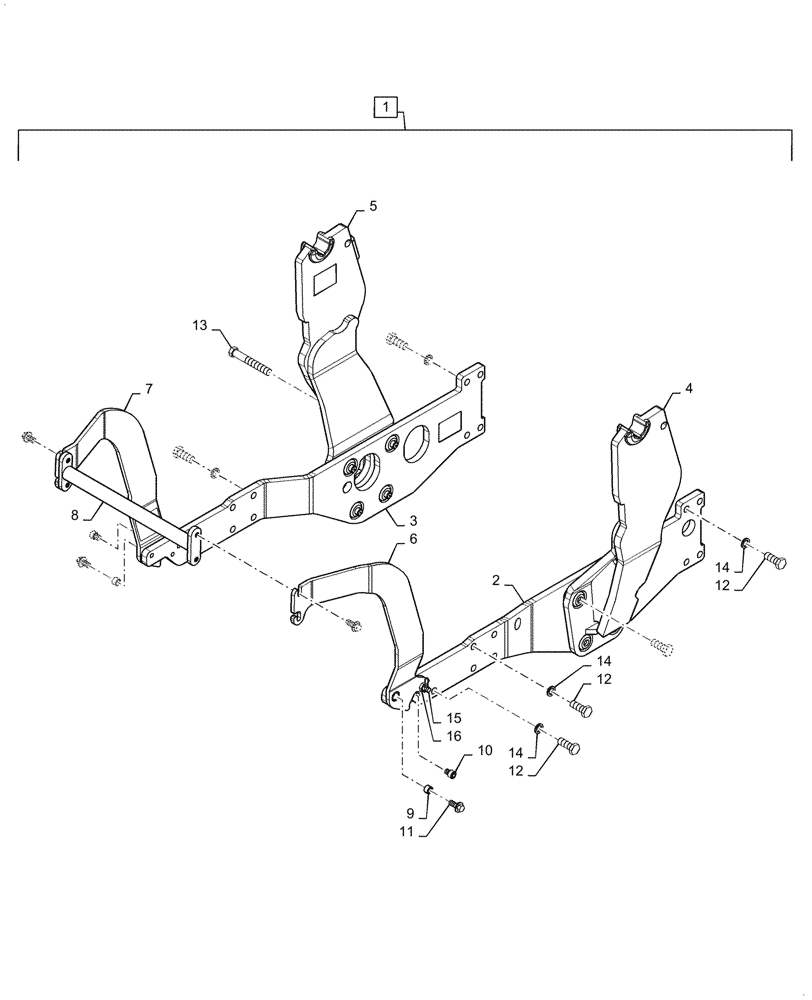

Запчасти Case IH L755 (39.100.260) - VAR - 713744006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 713744006

1шт.

Compatible Tractors - MAXXUM 115/125/135/145/150 T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

6

LDR60007721

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

7

LDR60007722

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

8

LDR10418686

REINFORCEMENT

Cross Member

1шт.

9

LDR10418691

SPACER

Outer

2шт.

10

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

11

LDR5006042

SCREW

M16 x 20mm L, Cl 8.8

2шт.

12

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

6шт.

13

LDR5002917

SCREW

M20 x 180mm L, Cl 10.9

1шт.

14

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

18шт.

15

LDR5016994

PIN

Locking

2шт.

16

LDR5011922

NUT

2шт.
