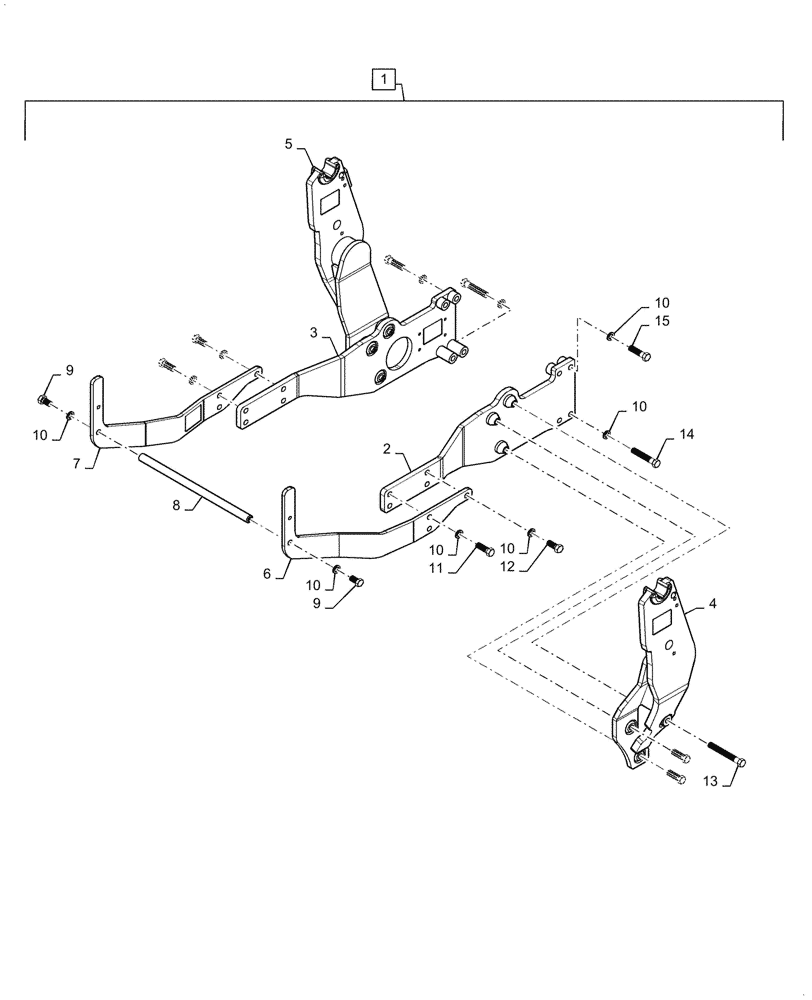

Запчасти Case IH L755 (39.100.170) - VAR - 713727006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe Set, Incl 2 - 15, Order Through Wholegoods 713727006

1шт.

Compatible Tractors - Farmall 110/119/130/139A EHP, 4 Cylinder, T4B

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR60005167

GUARD

Grille, LH

1шт.

7

LDR60005168

GUARD

Grille, RH

1шт.

8

LDR10418909

TIE-ROD

Cross Bar

1шт.

9

LDR5002202

SCREW

M20 x 40, Cl 8.8

2шт.

10

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

18шт.

11

LDR5002203

BOLT

M20 x 70mm L, Cl 8.8

6шт.

12

LDR5002934

SCREW

M20 x 55mm L, Cl 10.9

2шт.

13

LDR5002917

SCREW

M20 x 180mm L, Cl 10.9

2шт.

14

LDR5002204

SCREW

M20 x 130mm L, Cl 8.8

4шт.

15

LDR5002210

BOLT

M20 x 90mm L, Cl 8.8

4шт.
