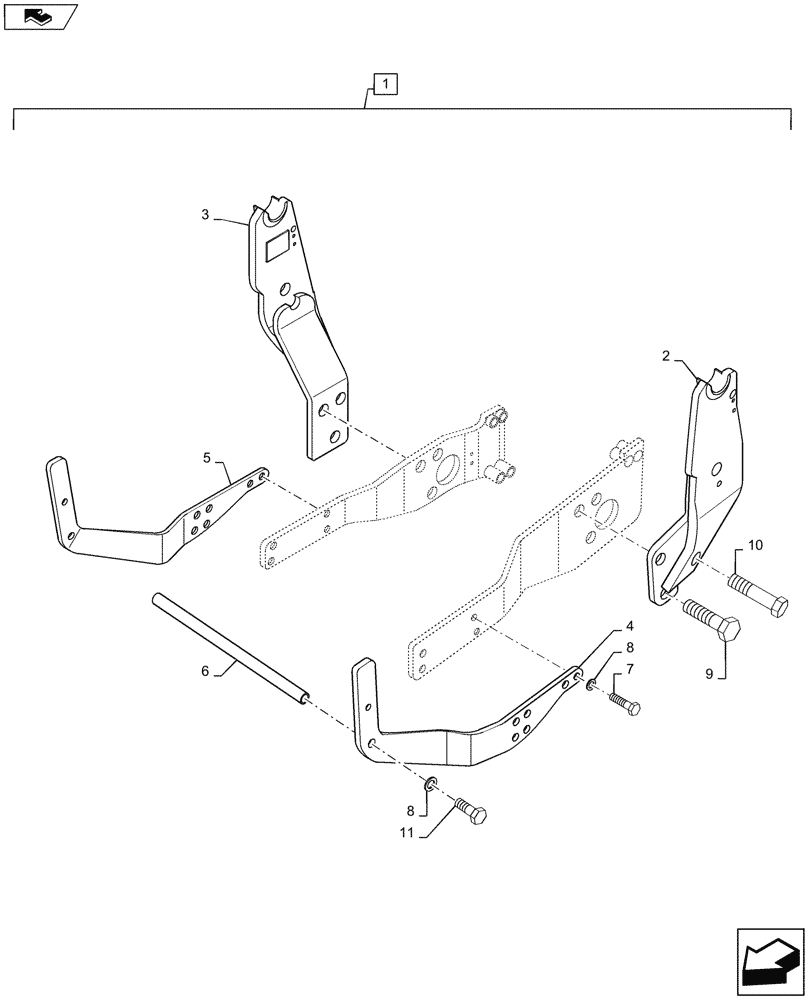

Запчасти Case IH L755 (39.100.160[02]) - VAR - 713647006 - UPRIGHTS, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Subframe, Incl 2 - 11, Order Through Wholegoods 713647006

1шт.

Compatible Tractors - New Holland TS6.110/120, 4 Cylinder

1шт.

Must Have TPS Side Rails Installed Before Installing

1шт.

2

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

4

LDR10414087

BRACKET

Grille Guard, LH

1шт.

5

LDR10414088

BRACKET

Grille Guard, RH

1шт.

6

LDR10391000

ROD

Tie

1шт.

7

LDR5001189

SCREW

6шт.

8

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

2шт.

9

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

4шт.

10

LDR5002208

SCREW,M20 x 140mm L

2шт.

11

LDR5002202

SCREW

M20 x 40mm L, Cl 8.8

2шт.
