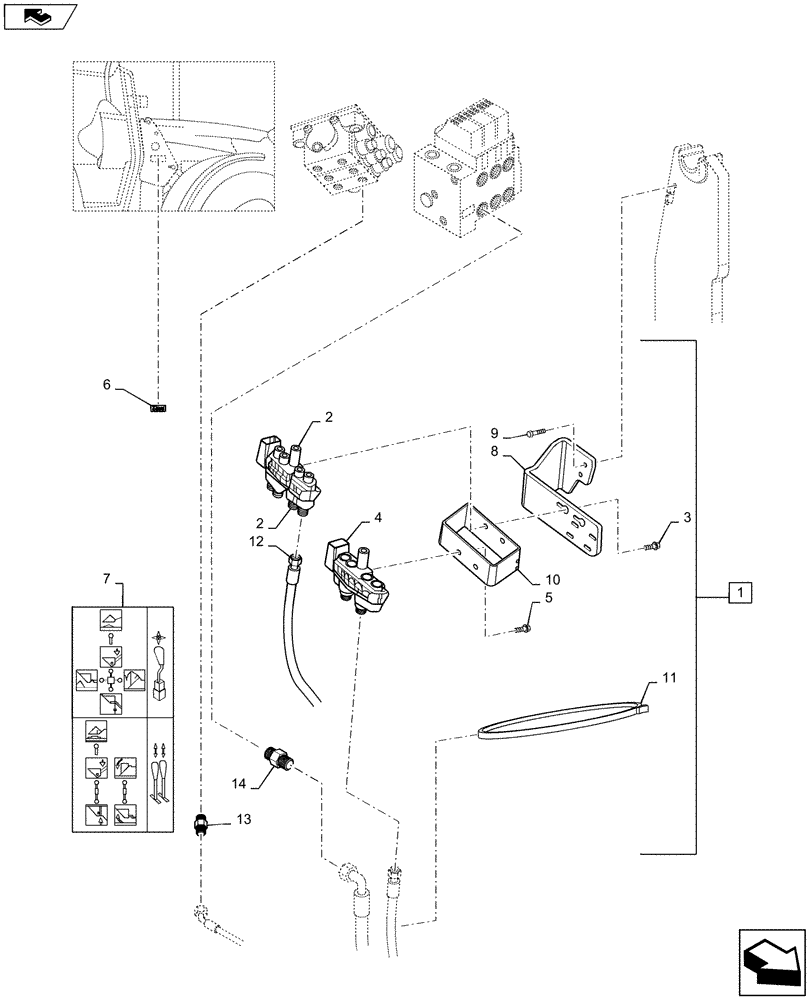

Запчасти Case IH L755 (35.734.AA) - VAR - 713666006 - 3 FUNCTION MULTI COUPLER HOSE KIT FOR MAXXUM 110, 115, 120, 125, 130, 140 (35) - HYDRAULIC SYSTEMS

2

LDR5044990

COUPLING,MC4 J 7/8"

Base

1шт.

3

LDR5006017

SCREW,M8 x 30

2шт.

4

LDR5044992

COUPLING,MC2 J 7/8"

Base

1шт.

5

LDR5006000

SCREW,M8 x 20, Cl 8.8

2шт.

6

LDR11135173

DECAL

1шт.

7

LDR11134370

DECAL

1шт.

8

LDR10415124

BRACKET

1шт.

9

LDR5005999

SCREW,M10 x 45mm

2шт.

10

LDR10413875

BRACKET, SUPPORTING

1шт.

11

LDR5033606

CABLE TIE

4шт.

12

LDR9032192

HYDRAULIC HOSE,1400mm L

6шт.

13

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

Mech Valve Connection

6шт.

14

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

Electro Valve Connection

6шт.
