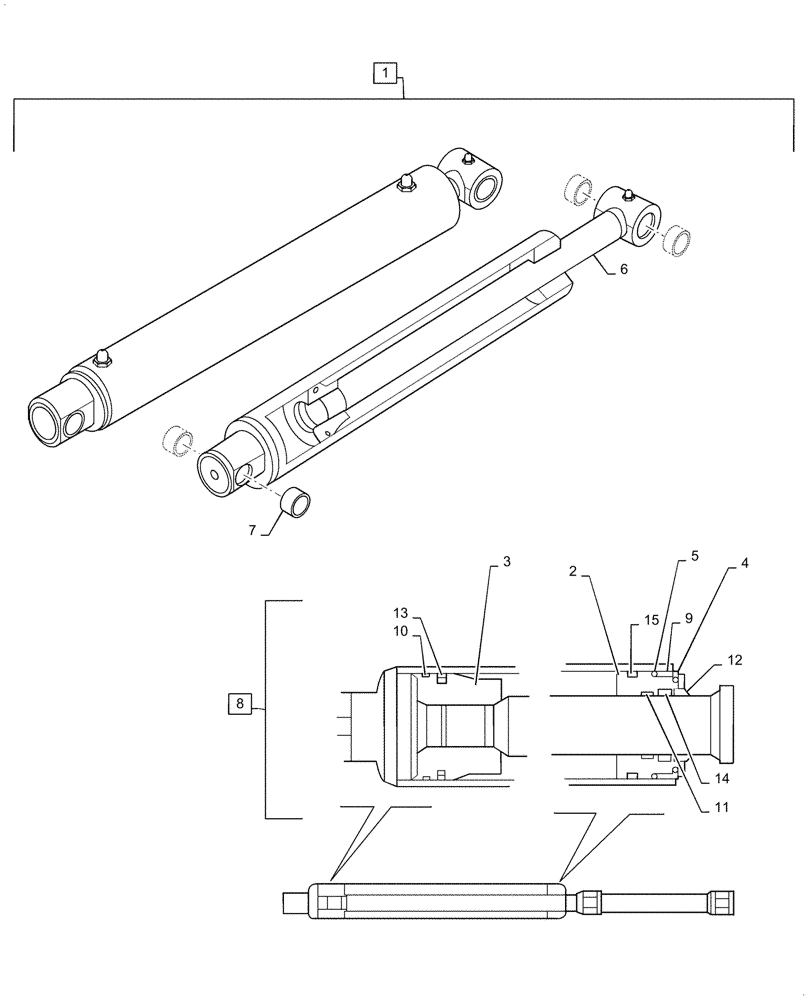

Запчасти Case IH L755 (35.701.040[01]) - LIFT ARM, HYDRAULIC CYLINDER - MSL/NSL (35) - HYDRAULIC SYSTEMS

1

LDR12713810

CYLINDER,Double Acting, 50mm Rod, 530mm Stroke

Boom Lift, Incl 2 - 15

1шт.

2

LDR12708611

BEARING

Hydraulic Cylinder

1шт.

3

LDR12708512

PISTON

Guide

1шт.

4

LDR5016623

RING

Retaining

1шт.

5

LDR5016672

RING

Retaining

1шт.

6

LDR12713823

FLUID COUPLING

Piston Rod

1шт.

7

LDR5018515

BUSHING,30mm L

2шт.

8

LDR5033771

SEAL PACKAGE

Services 1, Contains 7 Seals, Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O - Ring, Incl In 1, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, Incl In 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, Incl In 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Seal, Incl In 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, Incl In 1, 8

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Incl In 1, 8

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, Incl In 1, 8

1шт.
