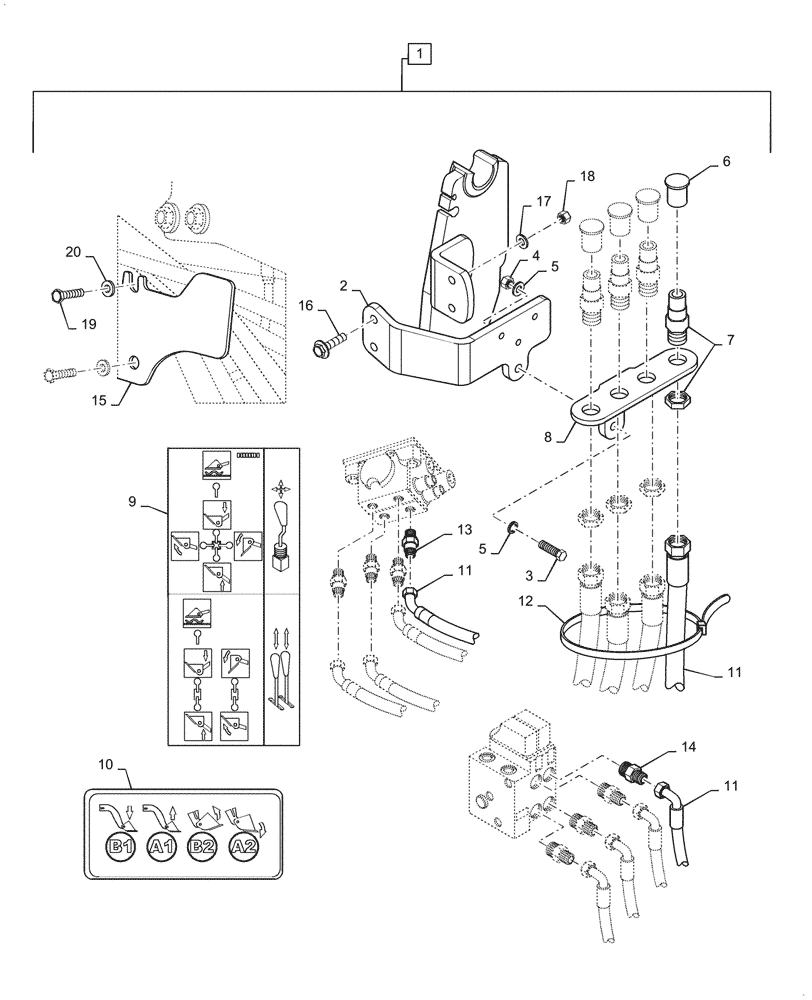

Запчасти Case IH L755 (35.525.AA[32]) - VAR - 713753006 - 2 FUNCTION, SINGLE COUPLER FOR MAXXUM 115 - 150EP (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

2 Function, Single Coupler Hose Kit, Incl 2 - 20, Order Through Wholegoods 713753006

1шт.

2

LDR60010329

PLATE

Mounting

1шт.

3

LDR5002053

SCREW,M8 x 30mm L

2шт.

4

LDR5011053

NUT

M8

2шт.

5

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

6

LDR5040090

DUST CAP

Hydraulic Fitting

4шт.

7

LDR5044983

QUICK MALE COUPLING

4шт.

8

LDR10414057

BRACKET

Support

1шт.

9

LDR11134370

DECAL

1шт.

10

LDR11135173

DECAL

1шт.

11

LDR9031863

HYDRAULIC HOSE

7/8" OD x 1600mm L

4шт.

12

LDR5033606

CABLE TIE

4шт.

13

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

4шт.

14

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

4шт.

15

LDR60010408

PLATE

Support

1шт.

16

LDR5005999

SCREW,M10 x 45mm

2шт.

17

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

18

LDR5011554

NUT,M10

2шт.

19

LDR5002127

SCREW

M14 x 35mm L, Cl 8.8

2шт.

20

LDR5013107

WASHER

15mm ID x 26mm OD x 2mm Thk

2шт.
