(35.525.AA[17]) - VAR - 730680016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS

Запчасти Case IH L755 (35.525.AA[17]) - VAR - 730680016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS

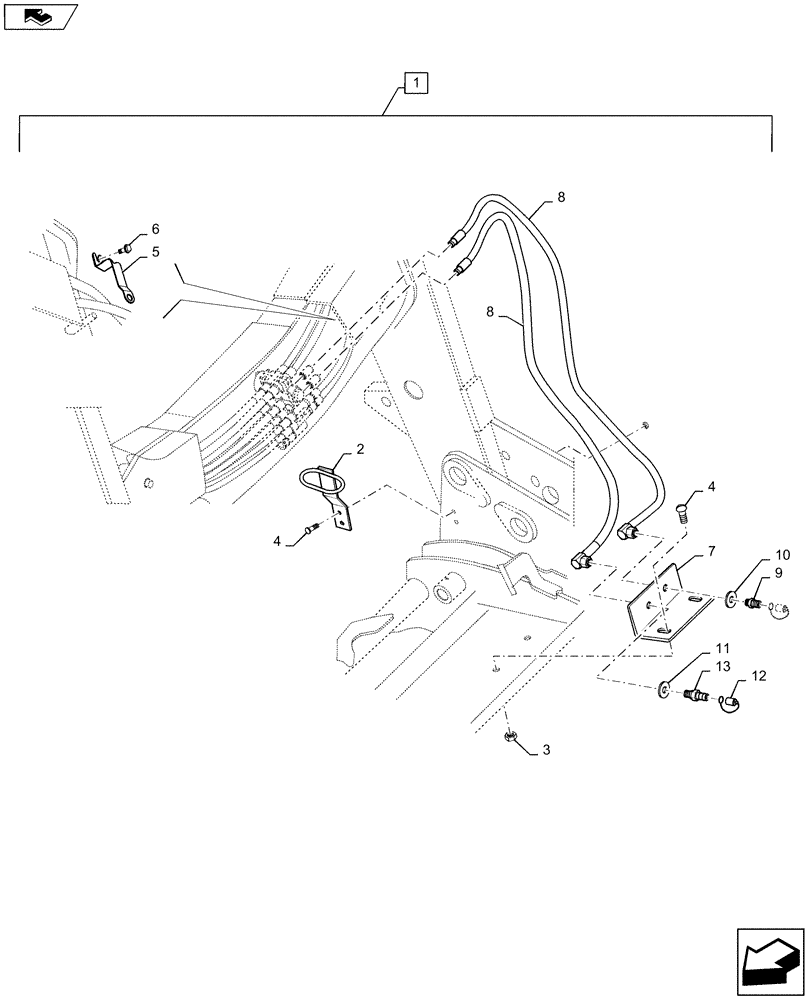

Схема запчастей Case IH L755 - (35.525.AA[17]) - VAR - 730680016 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS
5
12
9
8
4
2
13
11
4
home
8
3
1
7
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Live 3 Function Hose Kit, order from Wholegoods 730680016. Incl 2 - 13

1шт.

2

LDR5219183

GUIDE

1шт.

3

LDR5011554

NUT,M10

4шт.

4

LDR5006002

SCREW

4шт.

5

LDR5215066

GUIDE

1шт.

6

LDR5006007

SCREW

1шт.

7

LDR5220303

BRACKET

1шт.

8

LDR9031472

HOSE

2шт.

9

LDR5044940

QUICK MALE COUPLING,3/8" BSP

2шт.

10

LDR5022159

WASHER

1шт.

11

LDR5022157

WASHER

1шт.

12

LDR5044129

CAP

2шт.

13

LDR11120624

QUICK MALE COUPLING

2шт.
