(35.350.020) - VAR - 717520056 - SOFT RIDE KIT

Запчасти Case IH L755 (35.350.020) - VAR - 717520056 - SOFT RIDE KIT (35) - HYDRAULIC SYSTEMS

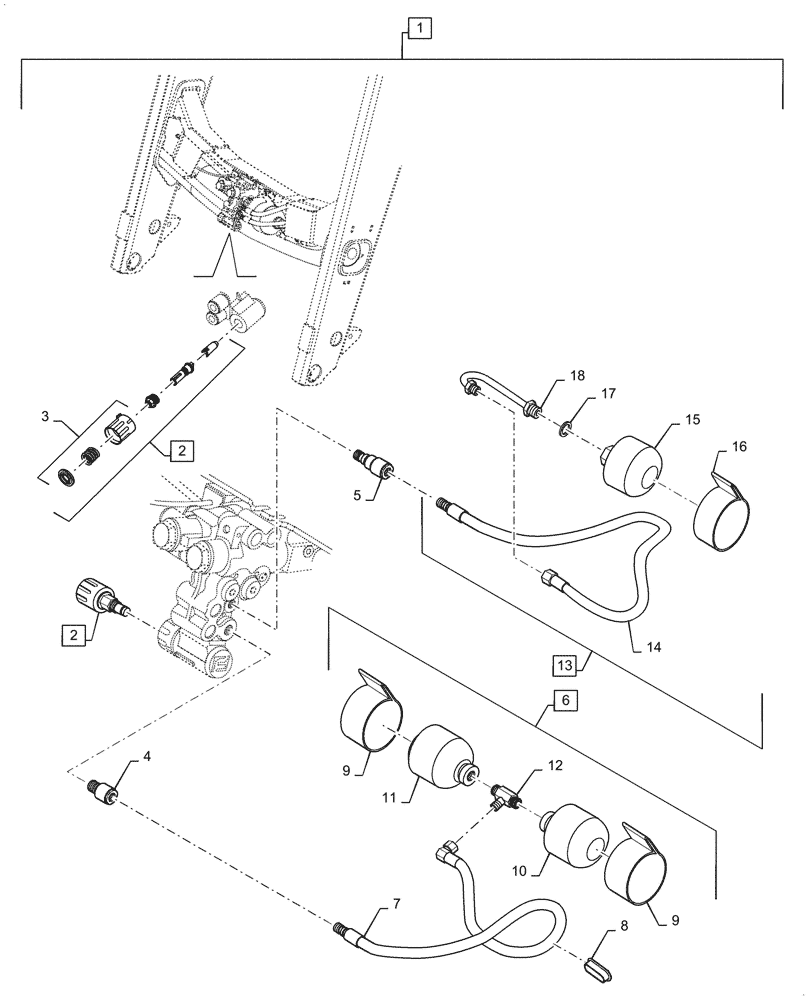

Схема запчастей Case IH L755 - (35.350.020) - VAR - 717520056 - SOFT RIDE KIT (35) - HYDRAULIC SYSTEMS
1
12
6
17
8
9
18
4
5
11
7
3
15
14
10
2
16
13
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Soft Ride Kit, Incl 2 - 18, Order Through Wholegoods 717520056

1шт.

2

LDR10550326

SHUT-OFF VALVE

Soft Ride

1шт.

3

LDR10550327

KNOB

Shut - Off Valve

1шт.

4

LDR9031324

COUPLING

Distribution Valve

1шт.

5

LDR11120622

ADAPTER

1шт.

6

LDR9031322

SERVICE KIT

Soft Ride, Accumulator, Incl 7 - 12

1шт.

7

LDR9031147

FLEXIBLE HOSE

3/8" OD x 800mm L

1шт.

8

LDR5215111

PROTECTOR

Hydraulic Hose

1шт.

9

LDR5215012

BRACKET

Support

2шт.

10

LDR5033773

ACCUMULATOR

Inner

1шт.

11

LDR5033772

ACCUMULATOR

Outer

1шт.

12

LDR11120516

TEE

Accumulator

1шт.

13

LDR9031892

SERVICE KIT

Soft Ride, Incl 14 - 18

1шт.

Used on DM Loaders

1шт.

14

LDR9031871

HYDRAULIC HOSE

3/8" OD x 800mm L

1шт.

15

LDR5034102

ACCUMULATOR

1шт.

16

LDR5215012

BRACKET

Support

1шт.

17

LDR5013853

WASHER

Accumulator

1шт.

18

LDR11120620

ADAPTER

Hydraulic Line

1шт.
