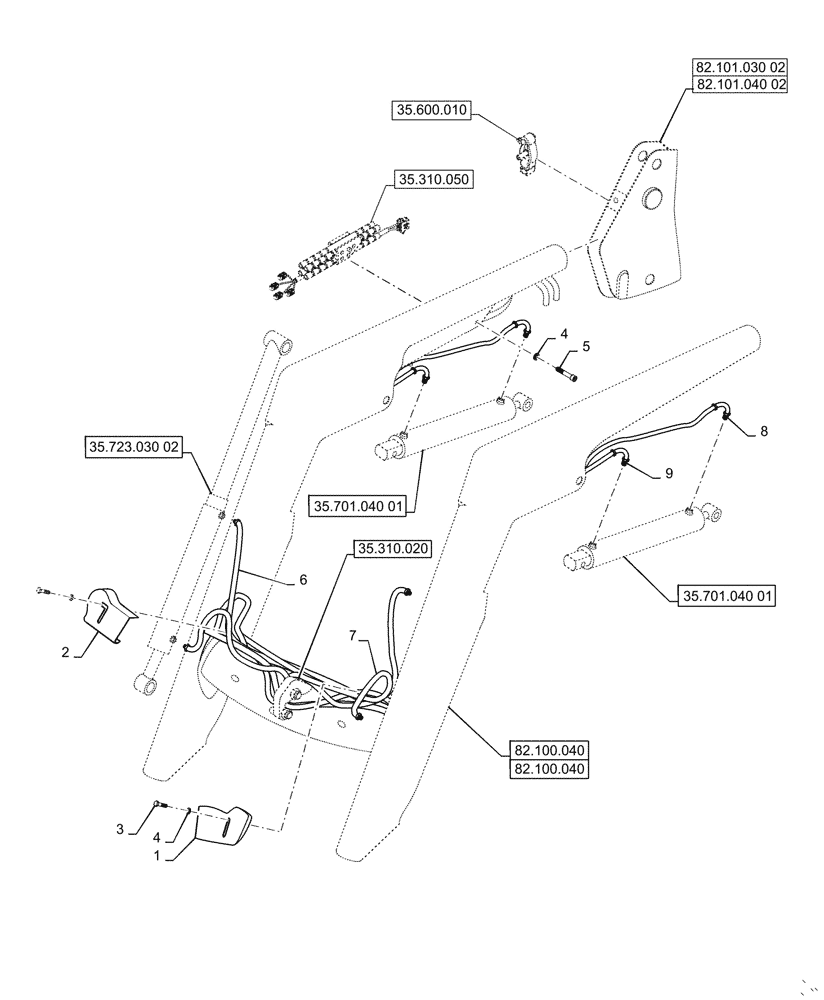

Запчасти Case IH L755 (35.100.080) - LOADER ARM HYDRAULICS - NSL (35) - HYDRAULIC SYSTEMS

1

LDR5220601

COVER

Hydraulic Hose, LH

1шт.

2

LDR5220603

COVER

Hydraulic Hose, RH

1шт.

3

LDR5011910

NUT

2шт.

4

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

5

LDR5005128

SCREW

M8 x 60mm L

1шт.

6

LDR9032601

HYDRAULIC HOSE

Upper, Bucket Tilt Cylinder, 3/8" OD x 1130mm L

2шт.

7

LDR9032631

HYDRAULIC HOSE

Lower, Bucket Tilt Cylinder, 3/8" OD x 750mm L

2шт.

8

LDR9032530

HYDRAULIC HOSE

Upper, Boom Lift Cylinder, 3/8" OD x 2580mm L

2шт.

9

LDR9032521

HYDRAULIC HOSE

Lower, Boom Lift Cylinder, 3/8" OD x 1950mm L

2шт.
