(35.100.070) - LOADER ARM HYDRAULIC - MSL

Запчасти Case IH L755 (35.100.070) - LOADER ARM HYDRAULIC - MSL (35) - HYDRAULIC SYSTEMS

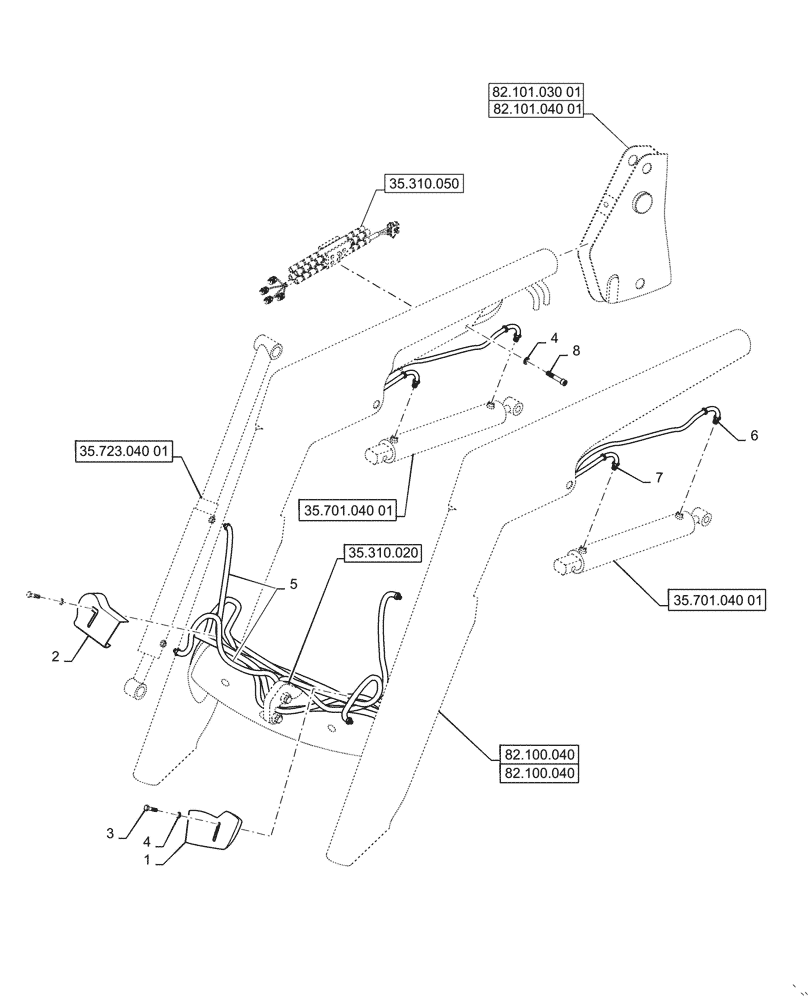

Схема запчастей Case IH L755 - (35.100.070) - LOADER ARM HYDRAULIC - MSL (35) - HYDRAULIC SYSTEMS
35.310.020
8
6
1
4
2
4
5
7
3
35.310.050
82.101.030 01
82.100.040
82.100.040
35.701.040 01
35.701.040 01
82.101.040 01
35.723.040 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5220601

COVER

Hydraulic Hose, LH

1шт.

2

LDR5220603

COVER

Hydraulic Hose, RH

1шт.

3

LDR5011910

NUT

2шт.

4

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

5

LDR9032603

HYDRAULIC HOSE

Bucket Tilt Cylinder, 3/8" ODx 900mm L

4шт.

6

LDR9032530

HYDRAULIC HOSE

Upper Boom Lift Cylinder, 3/8" OD x 2580mm L

2шт.

7

LDR9032521

HYDRAULIC HOSE

Lower Boom Lift Cylinder, 3/8" OD x 1950mm L

2шт.

8

LDR5005128

SCREW

M8 x 60mm L

1шт.
