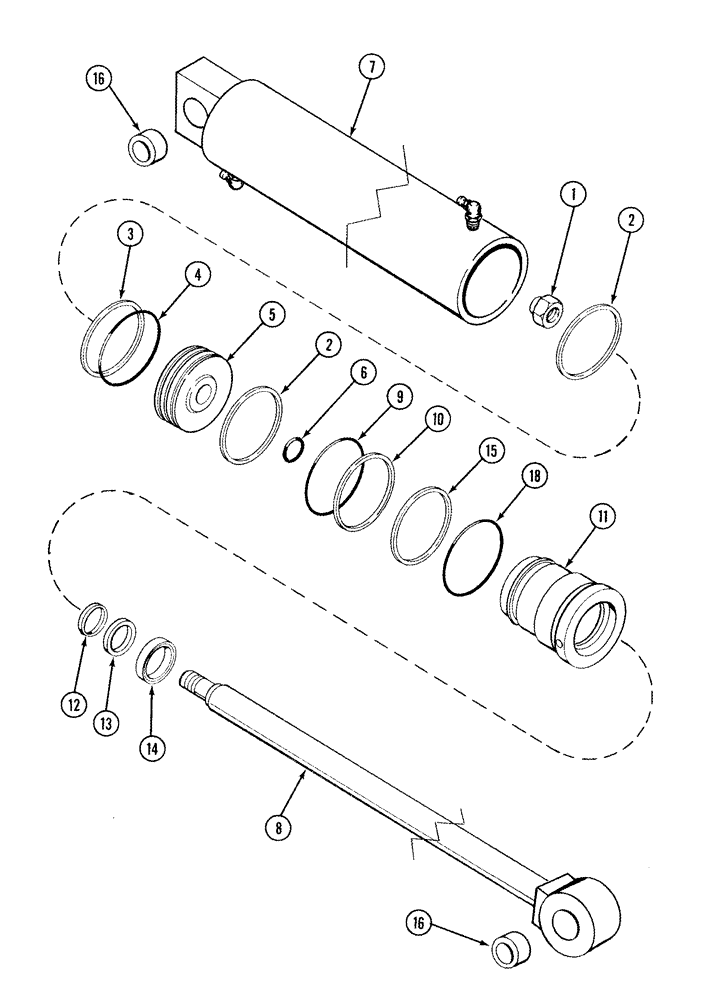

Запчасти Case IH L755 (08-02[02]) - CYLINDER ASSY LIFT L755 (08) - HYDRAULICS

89 mm (3.5 in) ID x 747 mm (29.4 in) strk

1шт.

338110A2

CYLINDER

89 ID x 747 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

360026A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

11/16 fc sl x 14 orb, Body

1шт.

8

338146A1

ROD

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

360027A1

HEAD ASSY.

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

318872A1

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

353125A1

SEAL KIT

Consists Of 1-4,6,9,10,12-15,18

1шт.
