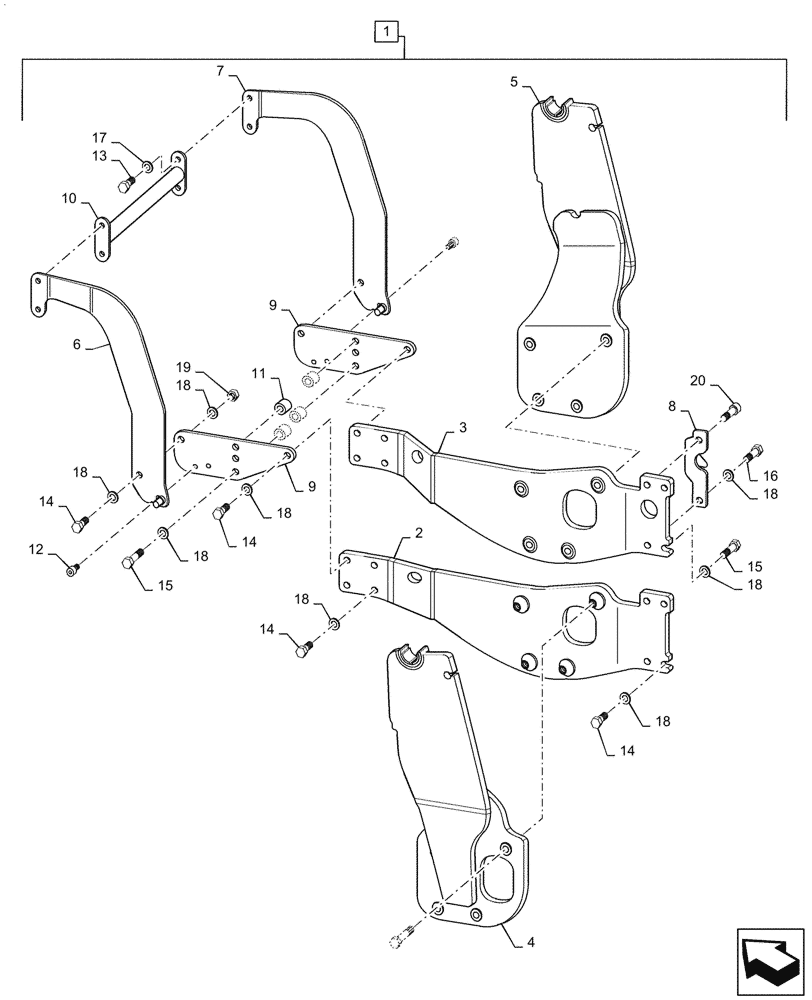

Запчасти Case IH L750 (39.100.260) - VAR - 730782006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 20, Order Through Wholegoods 730782006

1шт.

Compatible Tractors - MAXXUM 115/125/140, 6 Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10411693

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

7

LDR10411694

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

8

LDR10391535

BRACKET

Support

1шт.

Used On MAXXUM T3 Tractors, Also Use 15, 16, 20

1шт.

9

LDR10412790

BRACKET

Support

2шт.

10

LDR10411696

BAR

Cross Member

1шт.

11

LDR1109053

SPACER

Sleeve, 25mm Thk

4шт.

12

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

13

LDR5002170

SCREW

M16 x 30mm L, Cl 8.8

4шт.

14

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

16шт.

15

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

12шт.

16

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

1шт.

17

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

4шт.

18

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

26шт.

19

LDR5011559

LOCK NUT,M20

2шт.

20

LDR5004201

SCREW

M20 x 70mm L, Cl 10.9

1шт.
