(9-10) - MATERIAL BUCKET - GENERAL PURPOSE, STANDARD ATTACH TYPE

Запчасти Case IH L750 (9-10) - MATERIAL BUCKET - GENERAL PURPOSE, STANDARD ATTACH TYPE (09) - CHASSIS/ATTACHMENTS

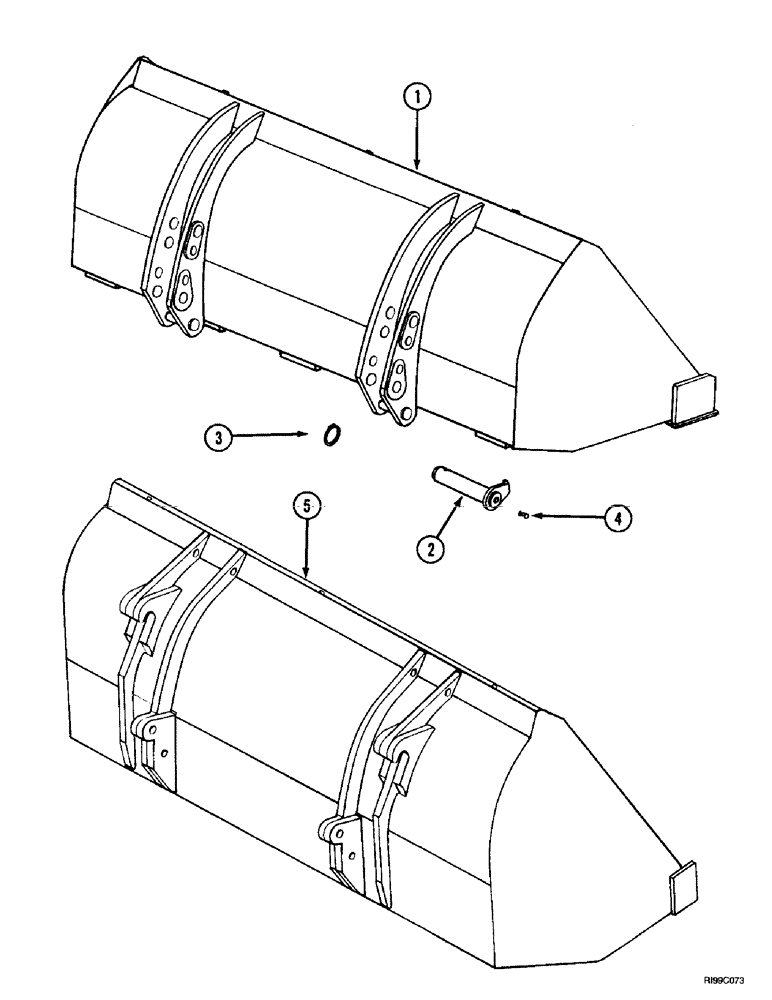

Схема запчастей Case IH L750 - (9-10) - MATERIAL BUCKET - GENERAL PURPOSE, STANDARD ATTACH TYPE (09) - CHASSIS/ATTACHMENTS
1
2
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

323267A1

BUCKET

84 in.

1шт.

2

349057A1

PIN

4шт.

3

103-16150

SNAP RING,#150, Ext

RING, SNAP, #150, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

5

320825A1

BUCKET

84 in. quick attach type

1шт.
