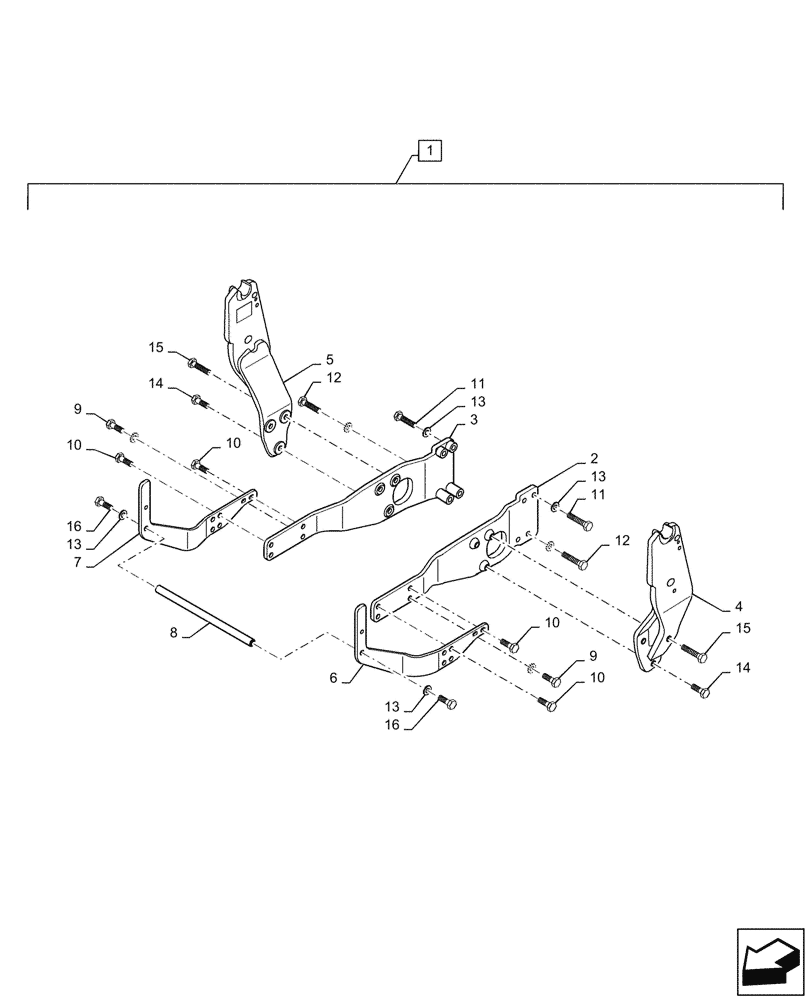

Запчасти Case IH L745 (39.100.160[01]) - VAR - 713648006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 16, Order Through Wholeoods 713648006

1шт.

Compatible Tractors - Farmall 125/140A, 6 Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10414087

BRACKET

Grille Guard, LH

1шт.

7

LDR10414088

BRACKET

Grille Guard, RH

1шт.

8

LDR10391000

ROD

Tie

1шт.

9

LDR5001180

SCREW

2шт.

10

LDR5001189

SCREW

6шт.

11

LDR5002210

BOLT

M20 x 90mm L, Cl 8.8

4шт.

12

LDR5002204

SCREW

M20 x 130mm L, Cl 8.8

4шт.

13

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

18шт.

14

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

4шт.

15

LDR5002208

SCREW,M20 x 140mm L

2шт.

16

LDR5002202

SCREW

M20 x 40mm L, Cl 8.8

2шт.
