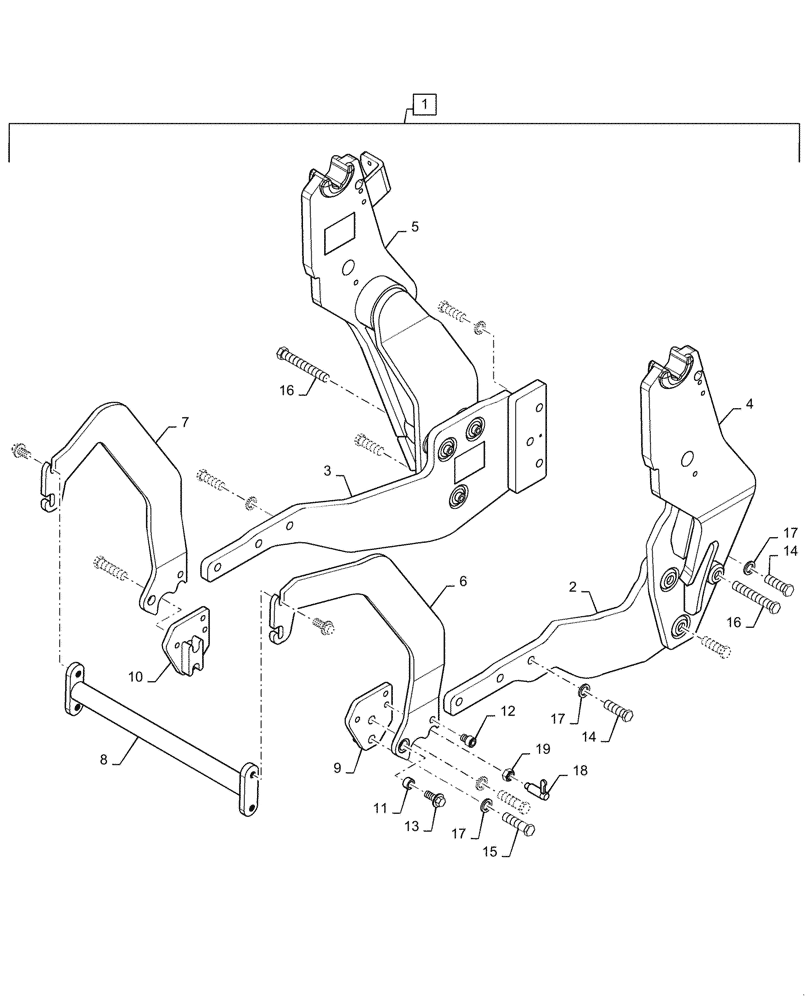

Запчасти Case IH L745 (39.100.140) - VAR - 713747006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 17, Order Through Wholegoods 713747006

1шт.

Compatible Tractors - Farmall 100/110/120U T4B, 4 Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

Reuse Factory Bolts As Needed

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR60007925

GUARD

Grille, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

7

LDR60007926

GUARD

Grille, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994 and P/N LDR5011922

1шт.

8

LDR10418686

REINFORCEMENT

Cross Tie

1шт.

9

LDR60001380

BRACKET

LH

1шт.

10

LDR60001381

BRACKET

RH

1шт.

11

LDR10418691

SPACER

2шт.

12

LDR5004940

SCREW

M16 x 20mm L, Cl 8.8

2шт.

13

LDR5006042

SCREW

M16 x 40mm L, Cl 8.8

2шт.

14

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

12шт.

15

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

4шт.

16

LDR20705246

SCREW

M20 x 140mm L, Cl 10.9

3шт.

17

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

16шт.

18

LDR5016994

PIN

2шт.

19

LDR5011922

NUT

M20 x 1.5

2шт.
