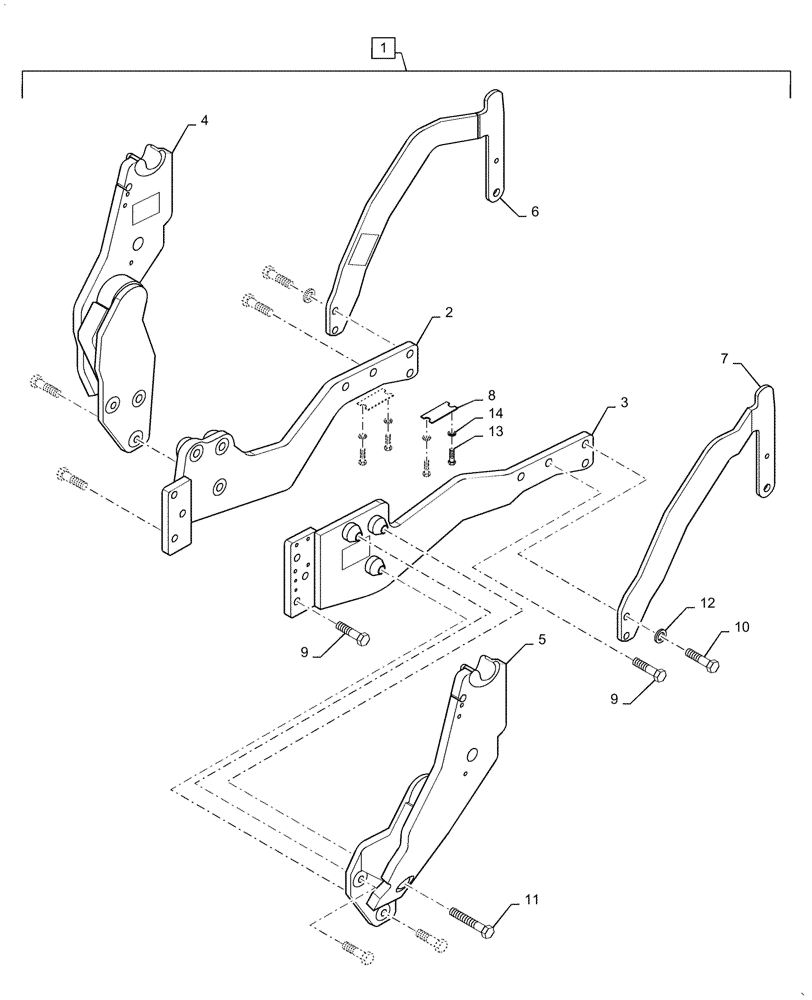

Запчасти Case IH L745 (39.100.130[01]) - VAR - 713703006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 713703006

1шт.

Compatible Tractors - Farmall U 105/115 ElectroCommand T4

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

Reuse Bolts On Tractor As Needed

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

Reuse Bolts On Tractor As Needed

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10416843

GUARD

Grille, LH

1шт.

7

LDR10416844

GUARD

Grille, RH

1шт.

8

LDR10356810

PLATE

Spacer

2шт.

9

LDR5002220

BOLT

M20 x 70mm L, Cl 10.9

10шт.

10

LDR5002221

BOLT,M20 x 80mm, Cl 10.9

4шт.

11

LDR20705246

SCREW

M20 x 140mm L, Cl 10.9

1шт.

12

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

14шт.

13

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

4шт.

14

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.
