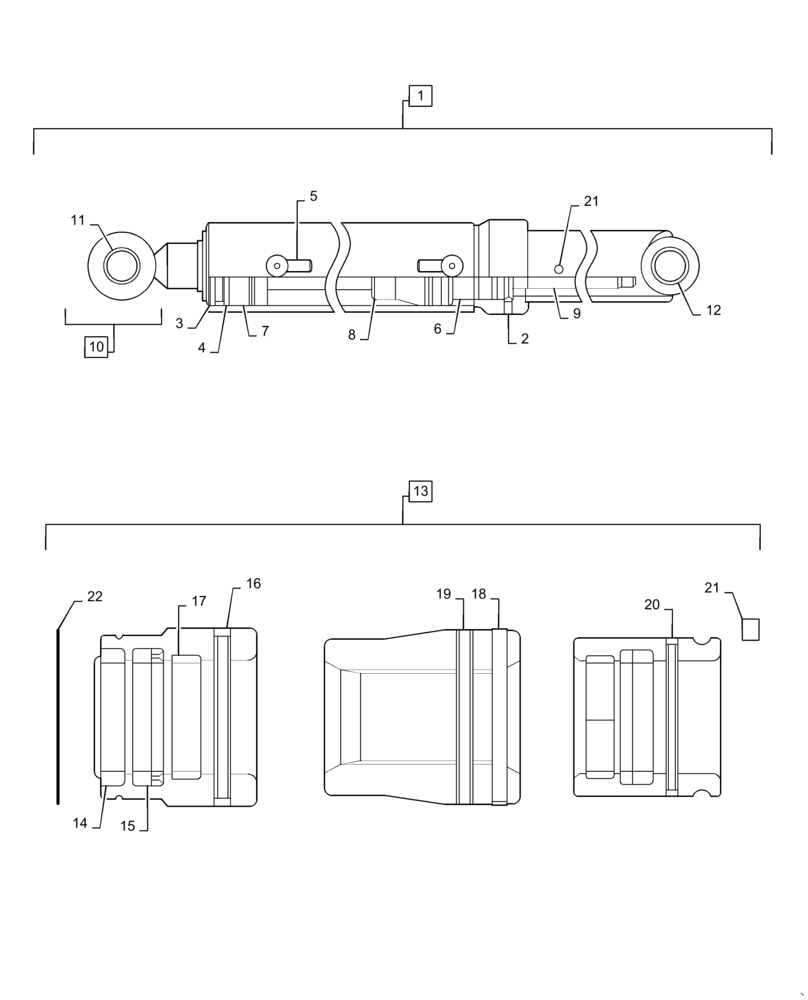

Запчасти Case IH L745 (35.723.030[01]) - BUCKET CYLINDER, HYDRAULIC CYLINDER - MSL (35) - HYDRAULIC SYSTEMS

1

LDR12720410

CYLINDER

Bucket Lift, Incl 2 - 22

1шт.

2

LDR5005983

SCREW

Stop

2шт.

3

LDR5016620

RING

Retaining

1шт.

4

LDR5016667

RING

Retaining

1шт.

5

LDR5026637

PLUG

Shipping

1шт.

6

LDR12700017

GUIDE

Cylinder Rod

1шт.

7

LDR12708011

GLAND

Hydraulic Cylinder Housing

1шт.

8

LDR12708012

PISTON

Lift Cylinder

1шт.

9

LDR12700915

ROD

Rear

1шт.

10

LDR12712823

ROD

Piston, Incl 11

1шт.

11

LDR5018514

BUSHING,35mm L

2шт.

12

LDR5018515

BUSHING,30mm L

2шт.

13

LDR5033714

SEAL PACKAGE

Services 1, Contains 10 Seals, 1 Plug, Incl 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 13

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 13

2шт.

16

NSS

NOT SOLD SEPARAT

Cover Seal, 73.6mm ID x 80mm OD x 6.4mm Thk, Incl in 1, 13

1шт.

17

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 13

2шт.

18

NSS

NOT SOLD SEPARAT

Guid Rind, 75mm ID x 80mm OD x 5.5mm Thk, Incl in 1, 13

1шт.

19

NSS

NOT SOLD SEPARAT

Piston Seal, 64.5mm ID x 80mm OD x 6.3mm Thk, Incl in 1, 13

1шт.

20

NSS

NOT SOLD SEPARAT

Cover Seal, 52.4mm ID x 58mm OD x 3.6mm Thk, Incl in 1, 13

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 13

1шт.

22

NSS

NOT SOLD SEPARAT

O - Ring, 72.62mm OD x 3.53mm Thk, Incl in 1, 13

1шт.
