(35.525.AA[36]) - VAR - 713751006 - 2 FUNCTION HOSE KIT FOR FARMALL 95, 105, 115 T4B

Запчасти Case IH L745 (35.525.AA[36]) - VAR - 713751006 - 2 FUNCTION HOSE KIT FOR FARMALL 95, 105, 115 T4B (35) - HYDRAULIC SYSTEMS

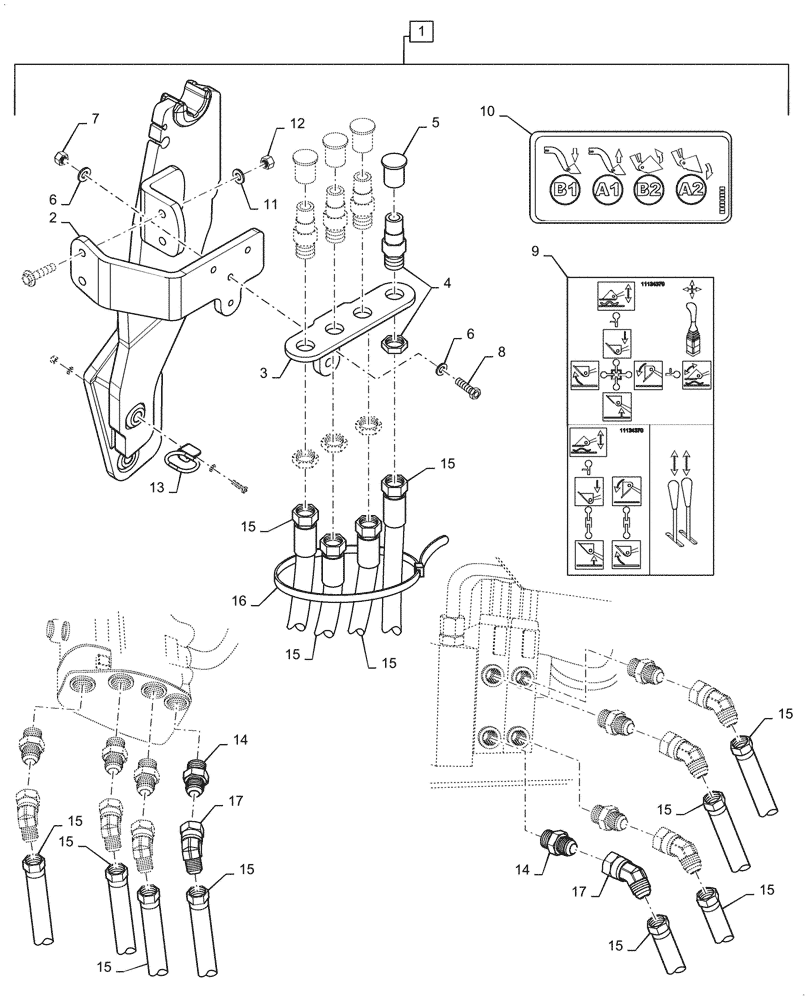

Схема запчастей Case IH L745 - (35.525.AA[36]) - VAR - 713751006 - 2 FUNCTION HOSE KIT FOR FARMALL 95, 105, 115 T4B (35) - HYDRAULIC SYSTEMS
8
15
14
14
15
1
15
7
6
15
15
6
16
12
5
11
15
15
4
15
2
13
15
15
15
15
9
3
10
17
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

2 Function Hose Kit, Incl 2 - 17, Order Through Wholegoods 713751006

1шт.

2

LDR60010329

PLATE

Valve Mounting

1шт.

3

LDR10414057

BRACKET

Support

1шт.

4

LDR5044983

QUICK MALE COUPLING

4шт.

5

LDR5040090

DUST CAP

Hydraulic Connector

4шт.

6

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

7

LDR5011053

NUT

M8

2шт.

8

LDR5002053

SCREW,M8 x 30mm L

2шт.

9

LDR11134370

DECAL

1шт.

10

LDR11135173

DECAL

1шт.

11

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

12

LDR5011554

NUT,M10

2шт.

13

LDR60010438

GUIDE

Hydraulic Hose

1шт.

14

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

4шт.

15

LDR9032011

HYDRAULIC HOSE

Flexible, 7/8" OD x 1600mm L

4шт.

16

LDR5033606

CABLE TIE

4шт.

17

LDR5027823

END FITTING

7/8" JIC x 7/8" JIC

4шт.
