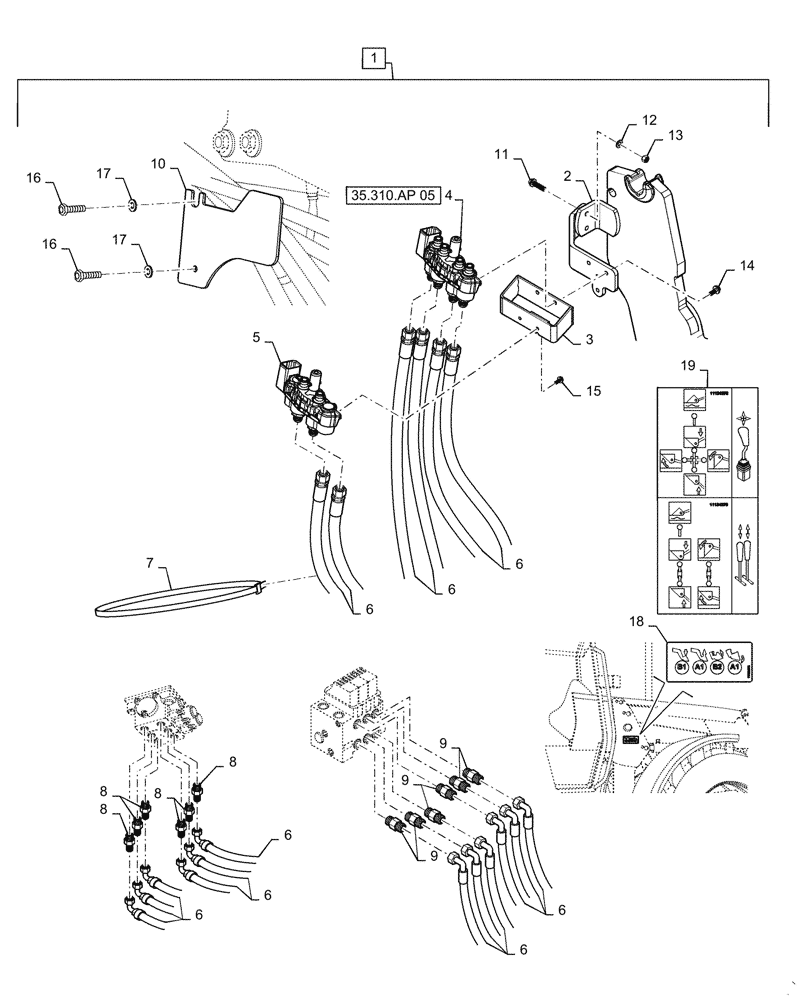

Запчасти Case IH L745 (35.525.AA[34]) - VAR - 713756006 - 3 FUNCTION HOSE KIT W/ MC6 FOR MAXXUM 115 - 150EP (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

3 Function Hose Kit W/ MC6, Incl 2 - 19, Order Through Wholegoods 713756006

1шт.

2

LDR60010329

PLATE

Valve Mounting

1шт.

3

LDR10413875

BRACKET, SUPPORTING

Valve

1шт.

4

LDR5044990

COUPLING,MC4 J 7/8"

1шт.

5

LDR5044992

COUPLING,MC2 J 7/8"

1шт.

6

LDR9031863

HYDRAULIC HOSE

Flexible, 7/8" x 1600mm L

6шт.

7

LDR5033606

CABLE TIE

4шт.

8

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

6шт.

9

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

6шт.

10

LDR60010408

PLATE

Support

1шт.

11

LDR5005999

SCREW,M10 x 45mm

2шт.

12

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

13

LDR5011554

NUT,M10

2шт.

14

LDR5006017

SCREW,M8 x 30

2шт.

15

LDR5006000

SCREW,M8 x 20, Cl 8.8

2шт.

16

LDR5002127

SCREW

M14 x 35mm L, Cl 8.8

2шт.

17

LDR5013107

WASHER

15mm ID x 26mm OD x 2mm L

2шт.

18

LDR11135173

DECAL

1шт.

19

LDR11134370

DECAL

1шт.
