(35.525.AA[12]) - VAR - 730679066 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS

Запчасти Case IH L745 (35.525.AA[12]) - VAR - 730679066 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS

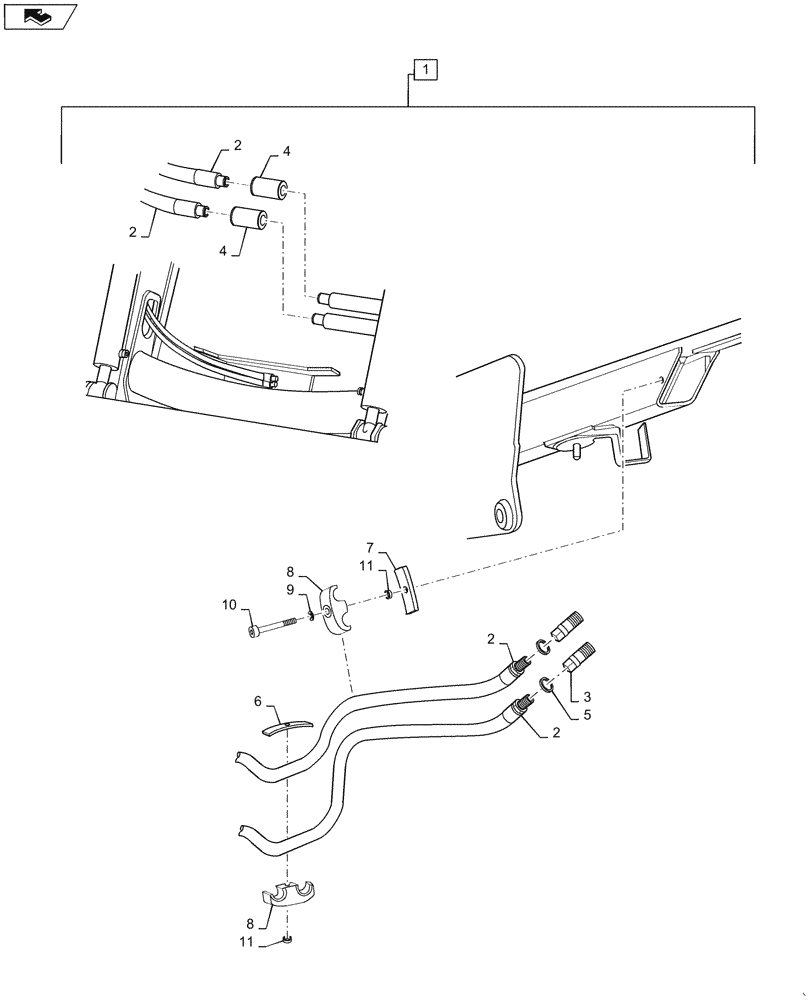

Схема запчастей Case IH L745 - (35.525.AA[12]) - VAR - 730679066 - LIVE 3 FUNCTION HOSE KIT WITH FLAT FACED COUPLERS (35) - HYDRAULIC SYSTEMS
9
2
11
1
3
2
11
4
7
home
5
8
4
6
2
10
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Live 3 Function LCS Hose Kit, Order from Wholegoods, 730679066. Incl 2 - 11

1шт.

2

LDR9031487

HOSE,3300mm L

2шт.

3

LDR5044976

COUPLING

2шт.

4

LDR5027986

ADAPTER

2шт.

5

LDR5013853

WASHER

2шт.

6

LDR5220148

PLATE

1шт.

7

LDR5215163

BRACKET

1шт.

8

LDR5215161

CLAMP

2шт.

9

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

1шт.

10

LDR5004055

SCREW

1шт.

11

LDR5215162

CLAMP BRACKET

2шт.

Выбрано товаров: 11
